Linear Slot Air Diffuser

Product Description The adjustable slot diffuser is used for supplying air in offices, shops, meeting rooms. The slot diffuser is designed for ceiling or wall mounting from 1 up to 5 slots. Each slot is individually adjustable with 2 specially designed discrete deflectors. The direction of air flow can up to 180 deg. Any length of linear diffuser is customizable. This frameless version ...
  • PRODUCT DETAIL
  • DOWNLOAD
  • SHIPPING
  • PAYMENT
Product Description
The adjustable slot diffuser is used for supplying air in offices, shops, meeting rooms. The slot diffuser is designed for ceiling or wall mounting from 1 up to 5 slots. Each slot is individually adjustable with 2 specially designed discrete deflectors. The direction of air flow can up to 180 deg. Any length of linear diffuser is customizable. This frameless version is ideally suited for flush installation in the ceiling or wall.
Comfort
Slot diffusers direct the air from air ducting into the room, either horizontally or at a desired direction. The resulting airflow
induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.
Precise and Durable
The frame and blades are made of high quality extruded aluminum profile. Electrophoresis black color for deflection blades as standard, anodized and powder coated are optional. Frame is powder coated with customizable color.

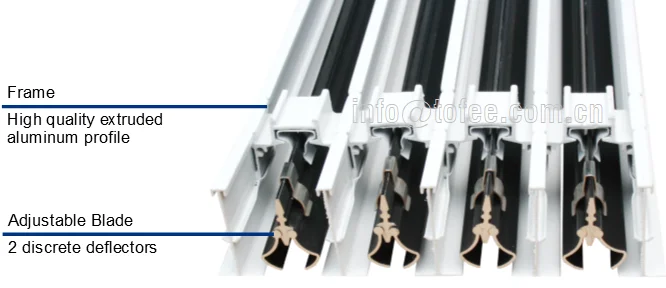

Construction
Frame and Blades
: made of high quality extruded aluminum profile. High rigidity and good looking.
Surface: powder coated for frame to white color of Ral9016, Ral9010 (or customized color). Anodized is optional. Electrophoresis black color for deflection blades.
Optional accessories: aluminum volume control damper (VCD), plenum box.
Features

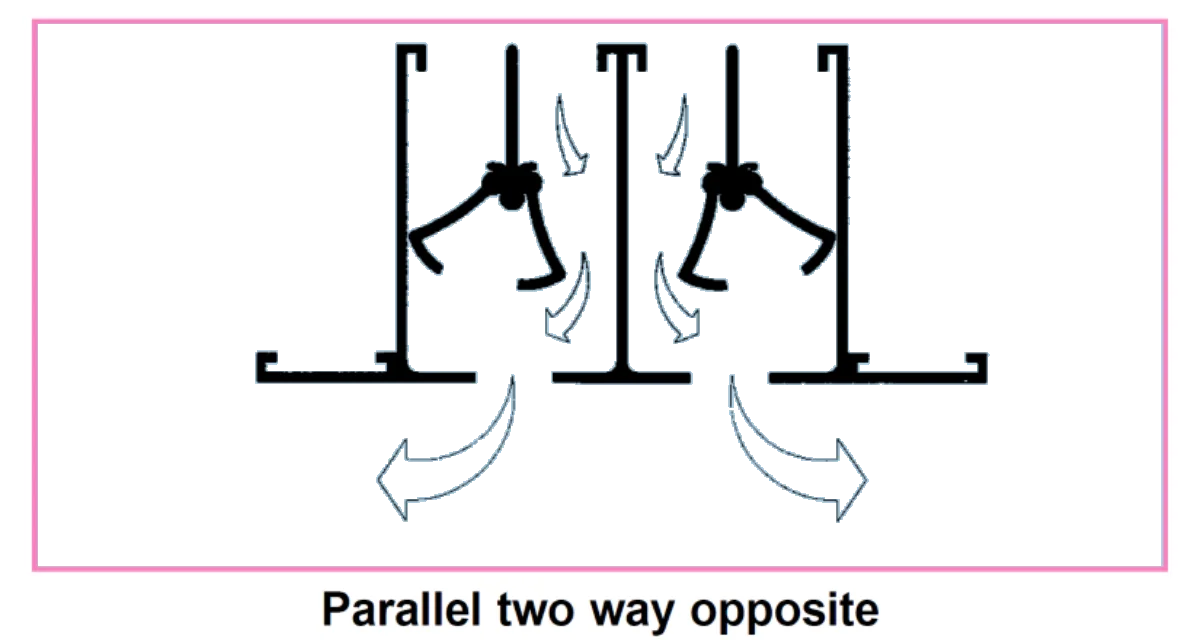

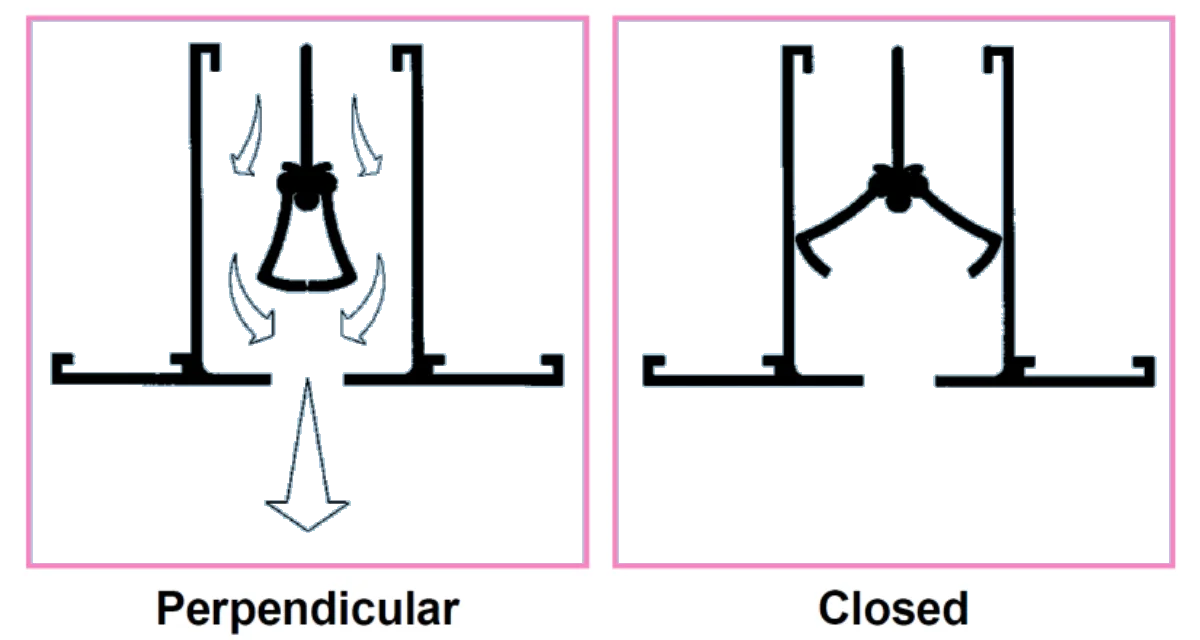

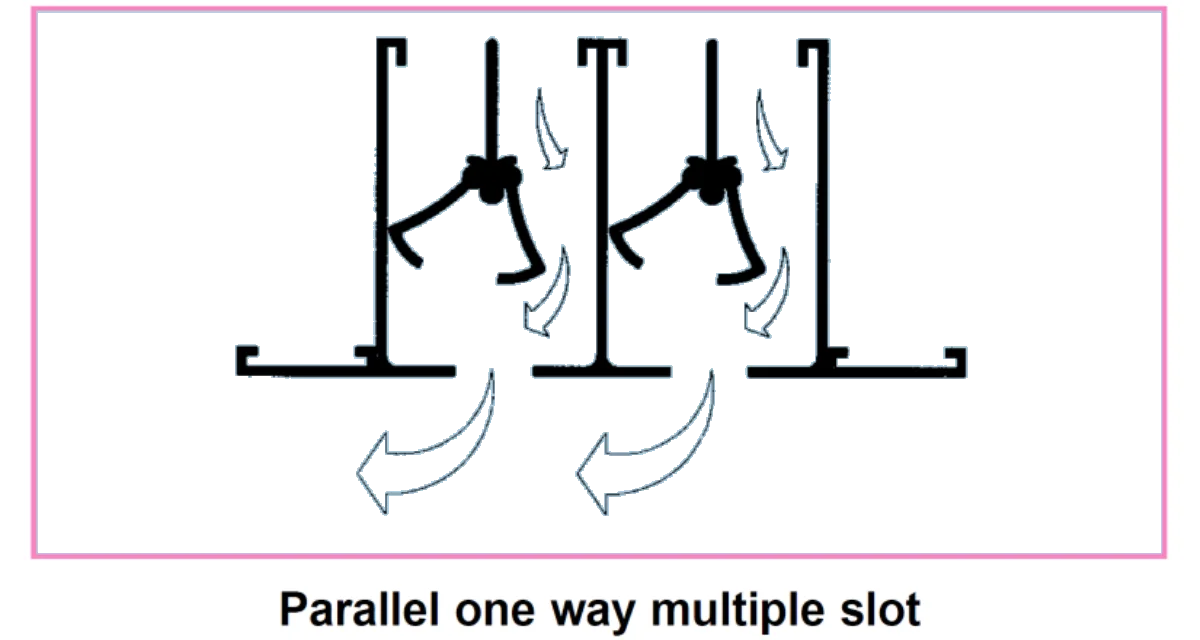

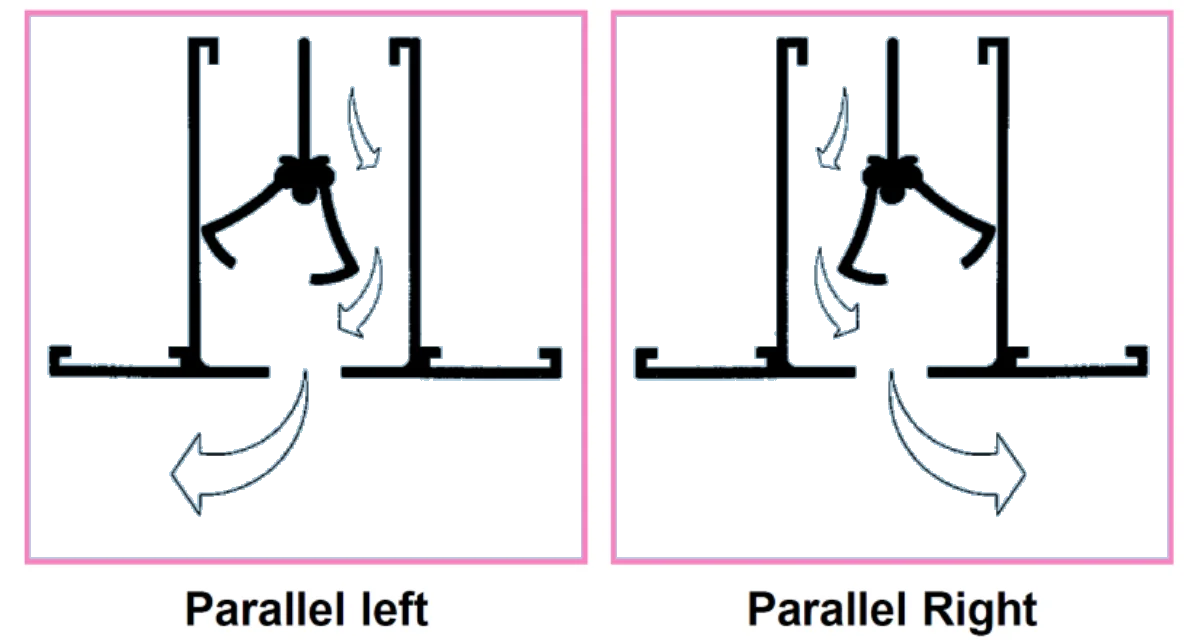

◇ The air supply direction and air flow rate can be adjusted in a wide range by two specially designed discrete deflectors in each slot.
◇ Create a mixed flow by inducing high level of room air, rapidly reducing airflow velocity and temperature difference in the
occupied zone to ensure occupation comfort.
◇ Durable structure and good looking, thickened profile frame processing and excellent assembly.
◇ Ideal for air supply in big and high spaces.
◇ Optional slot width 40/45/50mm.
◇ Suitable for using in rooms with heights up to 4m.
◇ Flexible for ceiling decoration, suitable for suspended continuous plasterboard or grid ceilings.

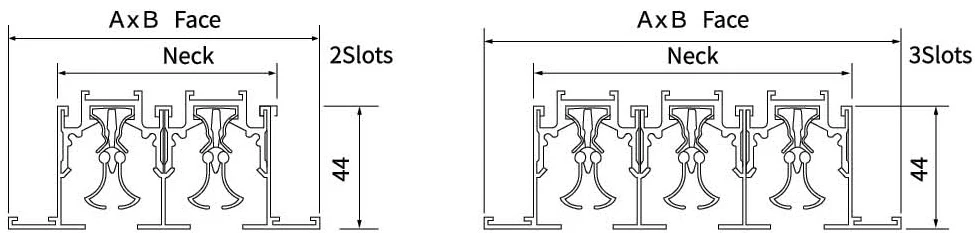

Dimension
Slot
Neck Size (mm)
Face Size (mm)
1
39
76
2
78
114
3
116
152
4
155
191
5
193
230
Air Flow Data
Details Images



Material: Aluminum

Thickness: 1.0mm thick frame, 0.8mm thick blade

DOWNLOAD

SHIPPING

Delivery Options:

Delivery Method
Incoterms Term
Applicable Countries
LCL, FCL by sea
EXW, FOB, CFR, CIF
General for all countries.
Air courier to door
DDU, DDP
General for all countries.
Air cargo to airport
CIF
General for all countries.
Door to door by road
DDP
Cambodia, Laos, Myanmar, Thailand, Vietnam. (keep expanding to more countries)
Door to door by seaDDU, DDPCambodia, Indonesia, Malaysia, New Zealand, Philippines, Singapore, Thailand, United Arab Emirates, United Kingdom, United States.   (keep expanding to more countries)
LCL=Less than Container Load.     FCL =Full Container Load
DDU = Delivery Duty Unpaid        DDP = Delivery Duty Paid
The above shipping information is general, and changing from time to time. Confirmation with us is necessary for each order.

Guangzhou tofee China one-stop hvac supplier



PAYMENT

Payment Options:
  • T/T (Telegraphic Transfer)
  • L/C (Letter of Credit)
  • Western Union
  • Alibaba Trade Assurance (Alipay)
