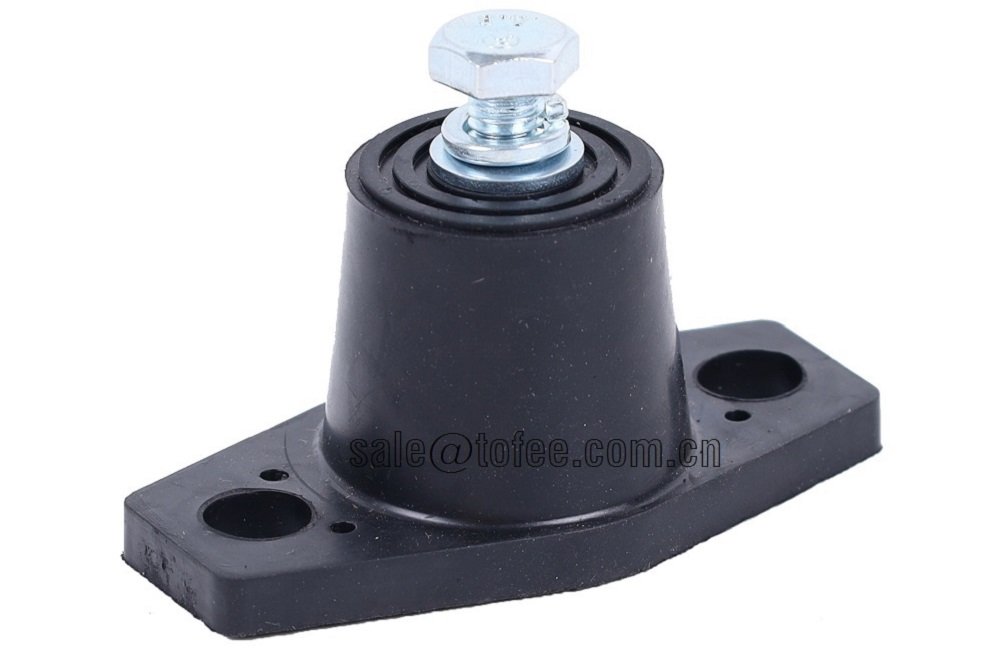

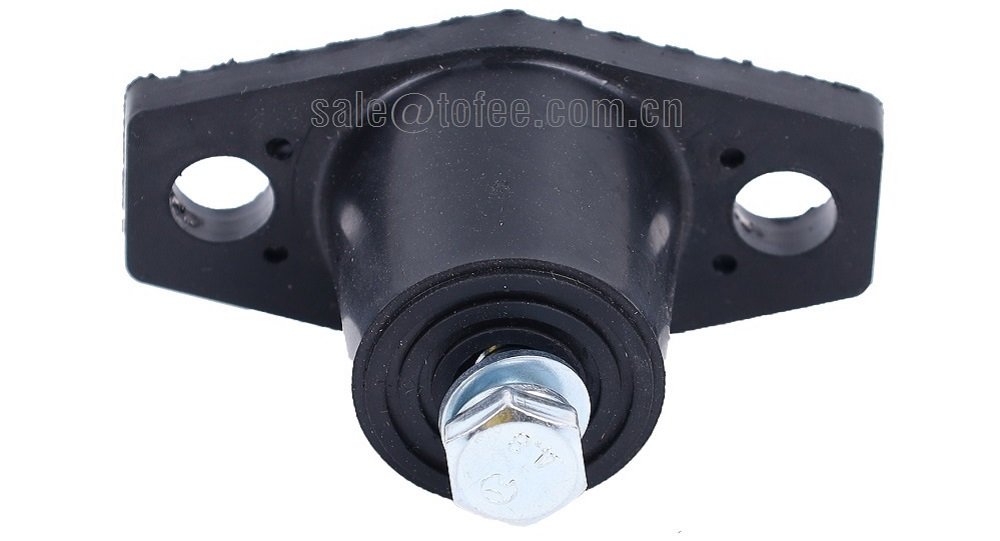

Metal Combined Rubber Mount Vibration Isolator (Model CRM)

* Loading capacity: 5~130Kg.

* Material: steel plates cast in molded rubber.

  • PRODUCT DETAIL
  • Shipping
  • Payment
Description

RM rubber mounts are used to prevent noise and high frequency vibration from being transmitted to the support structure and local environment. They are designed for both high static deflections and simplified installation. They are loaded in both shear and compression to provide rubber in shear performance as well as overload protection.
They are widely used to isolate vibration for mechanical equipments, e.g. fans, blowers, pumps, compressors, generators, etc. Ribbed friction surface at bottom makes bolting unnecessary in most installations.

Features

* High static deflection
* Combination of metal and rubber, guarantee strength and deflection
* Anti-slipping surface on top and at bottom
* Anti-vibration, elasticity and aging resistance
* Simplified installation

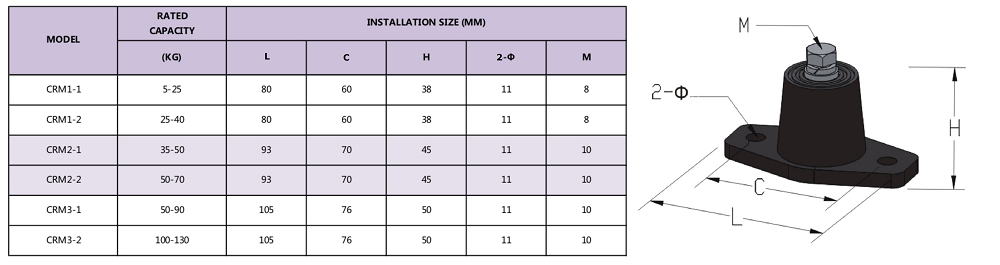

Specification

* Structure:
– One-piece molded rubber mounts with cast-in tapped steel load plate on the top and cast-in drilled steel base plate at the bottom.
– Incorporate two bolt-down holes on the bottom load surface and a tapped steel load top plate for attachment to the supported equipment.

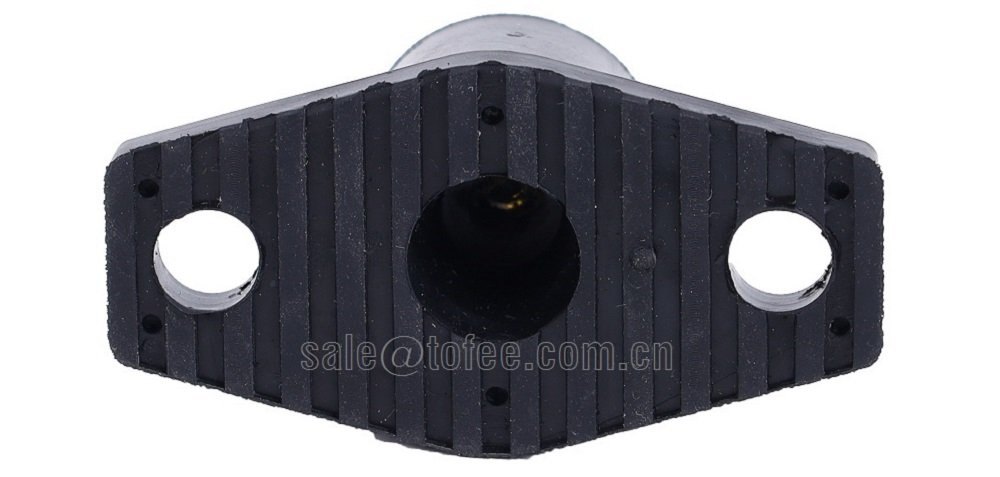

– Skid resistant rubber ridged base plates and circular rubber ridged tops.
