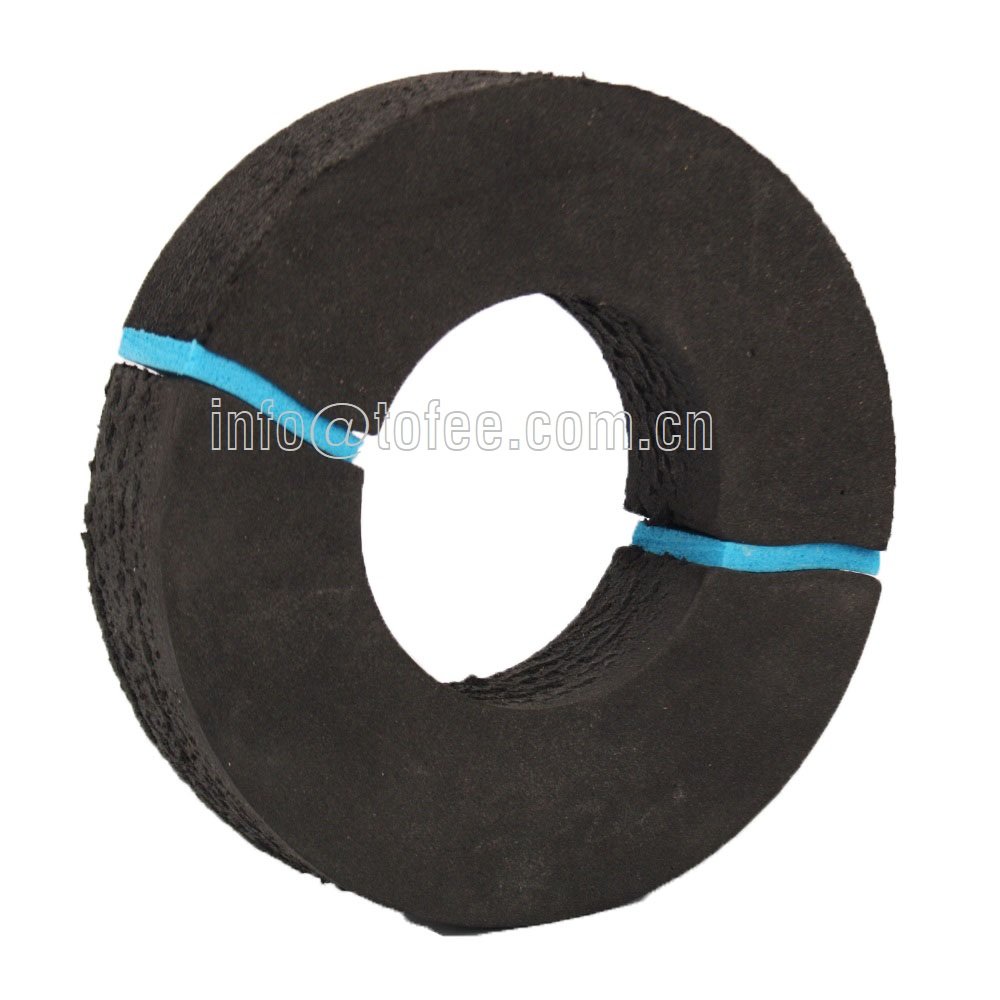

Pipe Insulation Insert

UR Type UTR Type Pipe Size (DN) Pipe Size (inch) Insert Inner Diameter (mm) Hole Size of Clamp Bolt (mm) Recommended Insulation Thickness (mm) UR Type UTR Type Distance of Two Bolts on Clamp (Center to Center, mm) Distance of Two Bolts on Clamp (Center to Center, mm) 20 3/4 26.8 8.5 20 80 97 25 1 33.5 8.5 20 87 104 32 1-1/4 42.3 8.5 25 106 123 40 1-1/2 48.0 8.5 25 111 128 ...
  • PRODUCT DETAIL
  • Download
  • Shipping
  • Payment
UR TypeUTR Type
Pipe Size (DN)Pipe Size (inch)Insert Inner Diameter (mm)Hole Size of Clamp Bolt (mm)Recommended Insulation Thickness (mm)UR TypeUTR Type
Distance of Two Bolts on Clamp (Center to Center, mm)Distance of Two Bolts on Clamp (Center to Center, mm)
203/426.88.5208097
25133.58.52087104
321-1/442.38.525106123
401-1/248.08.525111128
50260.08.525123142
652-1/275.58.530152166
80388.58.530165185
1004114.08.530190210
1255140.010.540238266
1506165.010.540263291
2008219.012.550340376
25010273.012.550394430
30012325.014.550448482
35014377.014.550500534
40016426.014.550549583
45018465.016.550588622
50020530.016.550653687
55022560.016.550684718
60024630.016.550754788
65026660.018.550783817
70028720.018.550843877
80032820.018.550943977
90036920.018.55010431077
1000401020.020.55011441178
1200481220.020.55013501390
1400561420.024.55015501590
1600641620.024.55017501790
1800721820.030.55019501990
2000802020.030.55021502190

Insert Inner Diameter (mm)Pipe Size (inch)Insert Inner Diameter (mm)Loading Width (mm)Load(kg)Span (m)Loading Width (mm)Load(kg)Span (m)Loading Width (mm)Load(kg)Span (m)
203/426.825542.025//25//
25133.525672.525//25//
321-1/442.325852.525//25//
401-1/248.025963.025//25//
50260.0251203.525//25//
652-1/275.5251514.025//25//
80388.5251775.025//25//
1004114.0252285.025//25//
1255140.0303365.030//30//
1506165.0303965.0405286.540//
2008219.0407015.0457886.5508767.5
25010273.0408745.0459836.55010927.5
30012325.04511705.05013006.55514307.5
35014377.04513574.05516596.56519607.5
40016426.04515344.06020456.57023867.5
45018465.05018604.07026046.58531627.5
50020530.05021204.08033926.59038167.5
55022560.05022404.08035846.59040327.5
60024630.05025204.08542846.510050407.5
65026660.05026403.08544886.510052807.5
70028720.05028803.09051846.510560487.5
80032820.05032803.010568886.512078727.5
90036920.05540483.011584646.513599367.5
1000401020.06048963.0125102006.5140114247.5
1200481220.06563443.0140136646.5160156167.5
1400561420.07585203.0160181766.5180204487.5
1600641620.080103683.0175226806.5200259207.5
1800721820.090131043.0190276646.5220320327.5
2000802020.0100161603.0210339366.5240387847.5
Insert Inner Diameter (mm)Pipe Size (inch)Insert Inner Diameter (mm)Loading Width (mm)Load(kg)Span (m)Loading Width (mm)Load(kg)Span (m)
203/426.825//25//
25133.525//25//
321-1/442.325//25//
401-1/248.025//25//
50260.025//25//
652-1/275.525//25//
80388.525//25//
1004114.025//25//
1255140.030//30//
1506165.040//40//
2008219.050//50//
25010273.06013108.560//
30012325.06516908.57018209.5
35014377.07021118.58024139.5
40016426.08027268.58528979.5
45018465.09533488.510539069.5
50020530.010042408.511046649.5
55022560.010547048.511551529.5
60024630.011055448.512563009.5
65026660.011058088.512566009.5
70028720.012069128.513074889.5
80032820.014091848.5155101689.5
90036920.0150110408.5170125129.5
1000401020.0160130568.5180146889.5
1200481220.0180175688.5205200089.5
1400561420.0205232888.5230261289.5
1600641620.0230298088.5255330489.5
1800721820.0250364008.5280407689.5
2000802020.0270436328.5305492889.5
