Single Deflection Air Grille

◇ High-quality extruded aluminum profile and high quality epoxy powder coated finish.

◇ Options: (1)blades fixed to frame. (2)blades fixed to a removable subframe.

◇ Quiet, smooth and rattle free operation.

◇ Deflection blades can be adjusted manually and individually.

◇ Grilles are rigidly fixed with opposed blade damper by grippers.

  • PRODUCT DETAIL
  • DOWNLOAD
  • SHIPPING
  • PAYMENT
Description

Single deflection air grilles are generally used in walls for supply / return HVAC applications, can be installed into walls and ceilings. The grille consists of frame, core and damper.  The blade angle can be adjusted from 0 ° to 180 ° to change the direction of air flow. Vertical or horizontal deflection is optional. The vertical deflection blades can adjust the diffusion angle and change the direction of the air flow. The horizontal deflection blades adjust the attachment of air flow to ceiling.

Vertical Blades

Horizontal Blades

Adjustable

Blades are individually adjustable to meet different local requirements.

Construction

Frame: High quality extruded aluminum profile with 30 mm flange width as standard. 25 mm flange width is optional.

Blade: Aero foil blades from aluminum profiles. High quality extruded aluminum profile with 1.0mm thickness, 1.2mm is optional.

Blade spacing: 22 mm as standard.

Optional Accessories

OBD (Opposed blades damper).

Screw driver accessible from face side.

Finishing

Natural anodized aluminum finish.

High Quality Epoxy Powder coated color finish as per RAL color codes.

Flexibility of finishing is available as option.

Round frame is optional.

Optional OBDOptional Round Frame
Features

◇ The Grille frame and blades are made of high-quality extruded aluminum profiled construction with high quality epoxy powder coated finish which are the advantages of corrosion resistance and rigidity.

◇ Vertical or horizontal deflection blade is optional.

◇ Two options of blades assembly: (1)blades fixed to frame. (2)blades fixed to a removable subframe.

◇ Frame is separated from the aero foil deflection blades by nylon bushings / spring. This method of assembly ensures quiet, smooth and rattle free operation.

◇ Deflection blades can be adjusted manually and individually.

◇ Grilles are rigidly fixed with opposed blade damper by grippers. Damper blade is screw driver operated from the face opening.

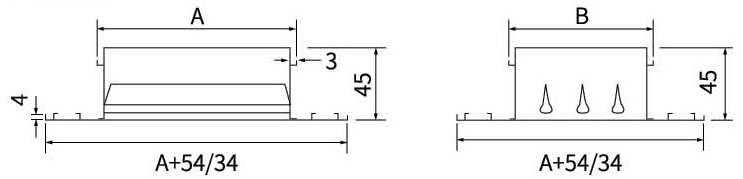

Dimension

Air Flow Data

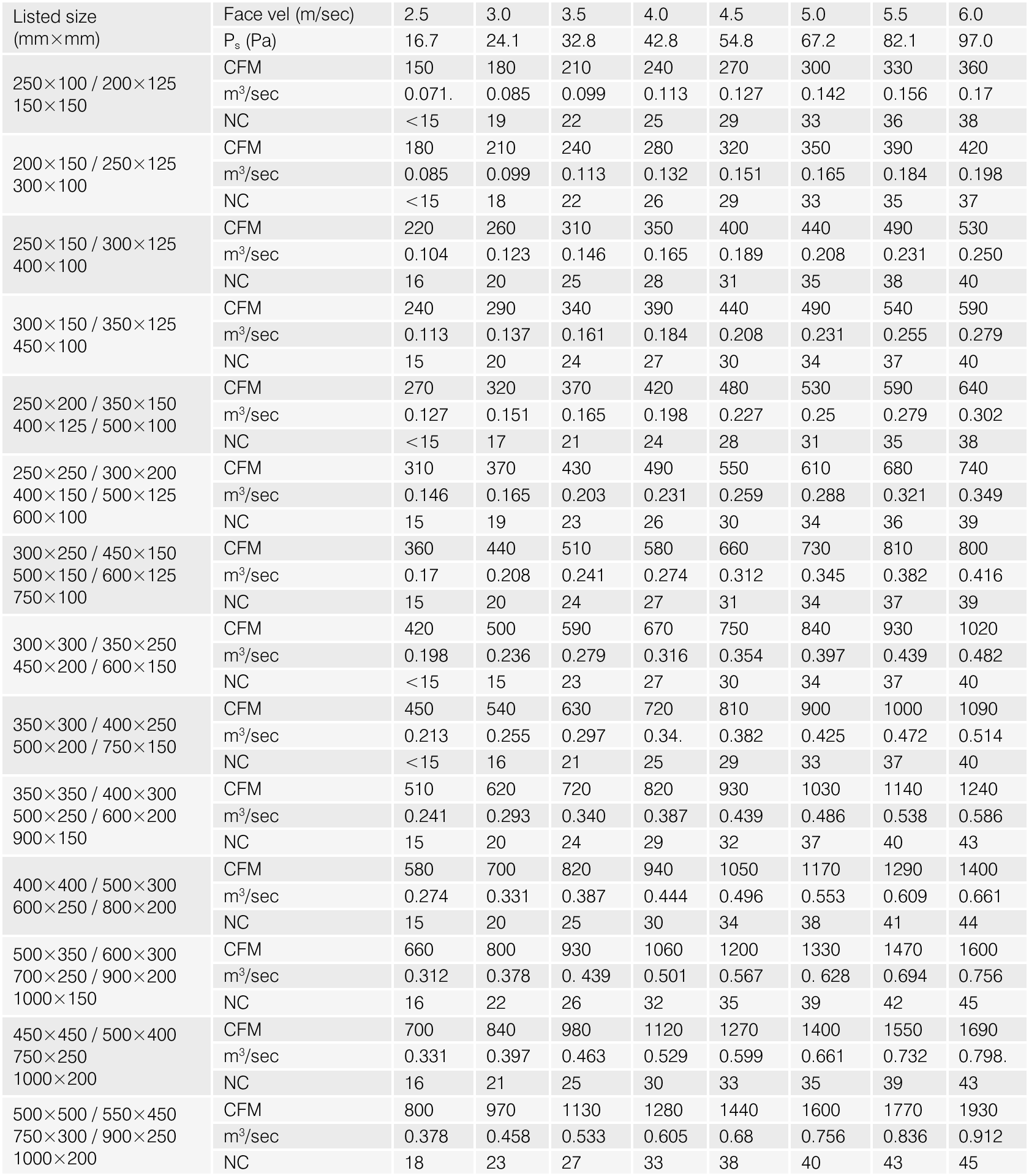

Table. 1

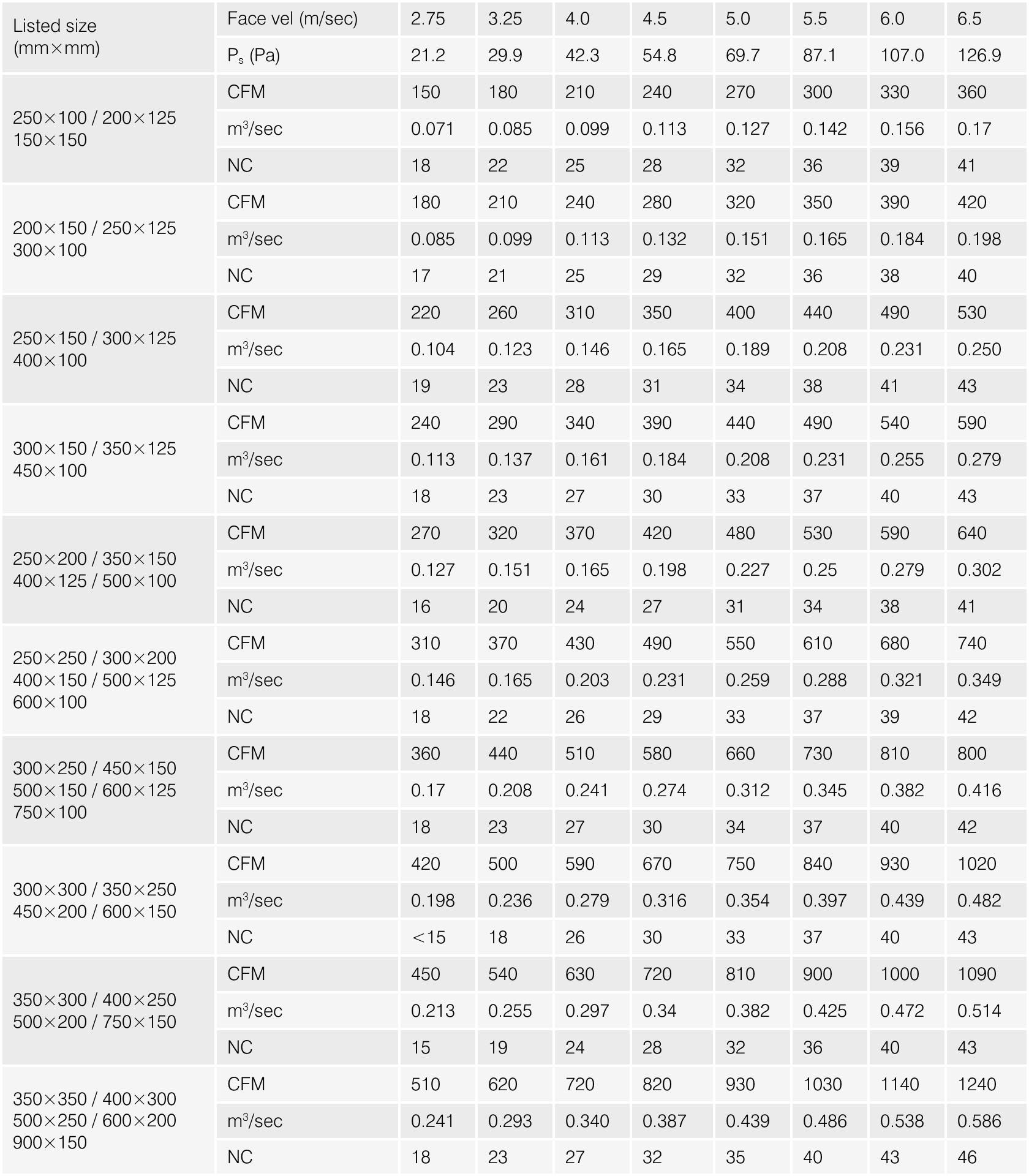

Table. 2

Face velocity is measured in m/sec.

Ps: static pressure loss in Pa.

NC based on a room attenuation of 10 dB.

Details Images

Product details will be published soon. Please contact us before the content published.
