Waffle Rubber Pad Vibration Isolator

Product Description Wafle rubber pads are molded in sheet consists of 81 2×2″ Super W vibration isolation pad modules that reduce noise, high frequency vibration, and impact from machines. These vibration isolation pads are made of natural rubber for durability and maximum vibration isolation, and the waffle pattern forms a self-sealing perimeter to keep oil and fluids from cont ...
  • PRODUCT DETAIL
  • Shipping
  • Payment
Product Description

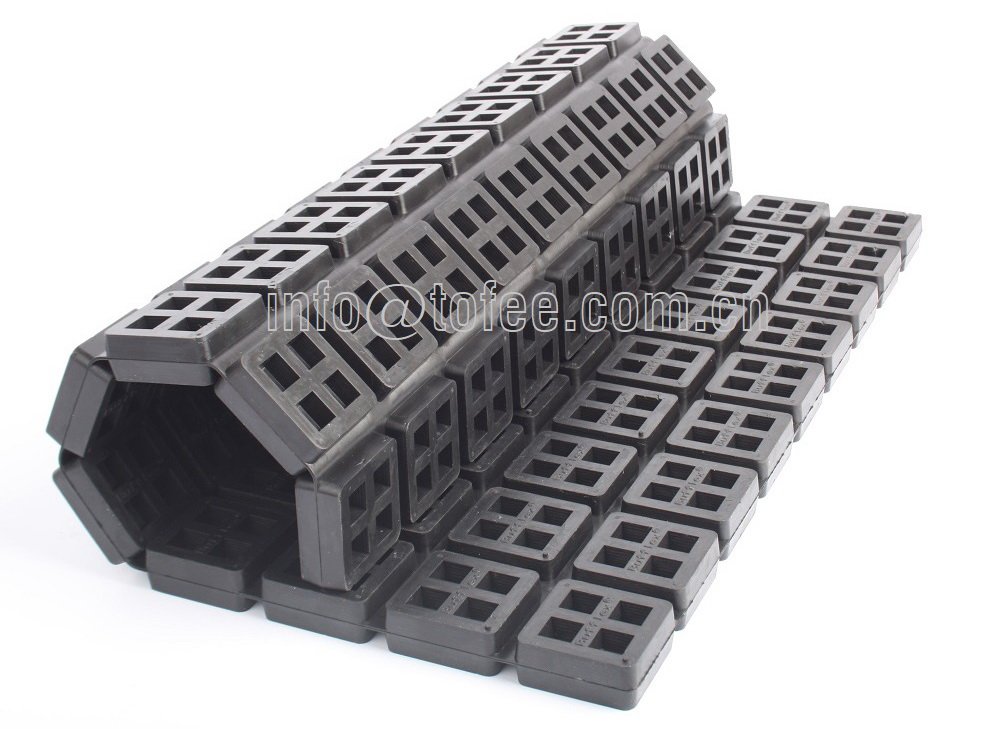

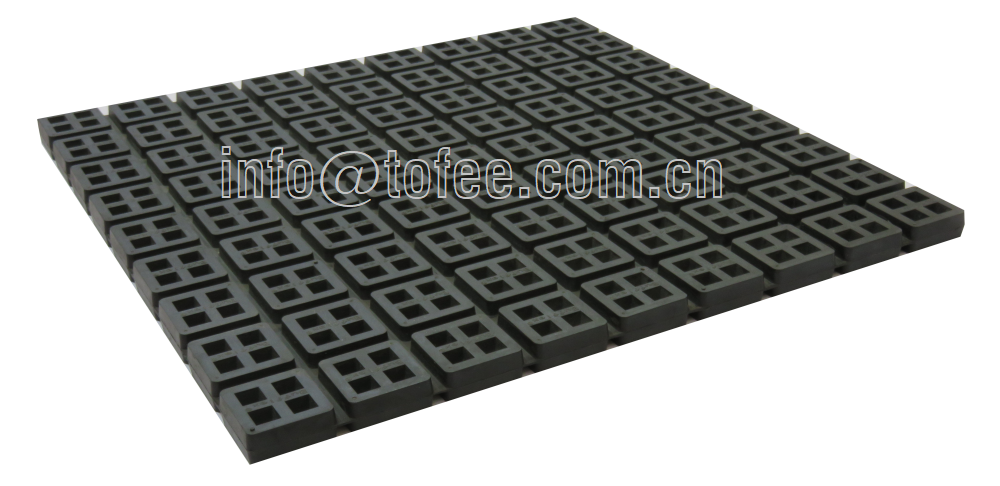

Wafle rubber pads are molded in sheet consists of 81 2×2″ Super W vibration isolation pad modules that reduce noise, high frequency vibration, and impact from machines. These vibration isolation pads are made of natural rubber for durability and maximum vibration isolation, and the waffle pattern forms a self-sealing perimeter to keep oil and fluids from contaminating the pad. A thin web separates the pads to provide evenly dimensioned sections that can be placed side-by-side to accommodate a machine’s load or stacked with 16 gauge shims between layers for increased deflection. The matching pattern on both sides of the pad improves its structural strength for increased load capacity. These Mason Super W pads are suitable for use with compressors, HVAC units, pumps, generators, transformers, and presses.

Natural Rubber for maximum resilienceand vibration isolation. Contains anti-oxidants and anti-ozonants to improve aging.

Standard Neoprene for longer life and moderate oil resistance.

Bridge-bearing Neoprene for maximum life,excellent oil resistance and resiliency approaching natural rubber.

Specifications
Available sizes:
18″ x 18″ x 3/4″ = 450 x 450 x 20mm
2″ x 2″ x 3/4″ = 50 x 50 x 20mm
2″ x 4″ x 3/4″ = 50 x 100 x 20mm
4″ x 4″ x 3/4″ = 100 x 100 x 20mm
6″ x 8″ x 3/4″ = 150 x 200 x 20mm



Details Images

Product details will be ready soon. Please contact us before the content uploaded.

Email: info@tofee.com.cn

Shipping

Shipping terms

Delivery MethodIncoterms TermApplicable Countries
LCL, FCL by seaEXW, FOB, CFR, CIFGeneral for all countries.
Air courier to doorDDU, DDPGeneral for all countries.
Air cargo to airportCIFGeneral for all countries.
Door to door by roadDDPCambodia, Laos, Myanmar, Thailand, Vietnam. (keep expanding to more countries)
Door to door by seaDDU, DDPCambodia, Indonesia, Malaysia, New Zealand, Philippines, Singapore, Thailand, United Arab Emirates, United Kingdom, United States.   (keep expanding to more countries)

LCL=Less than Container Load, FCL =Full Container Load.

DDU = Delivery Duty Unpaid (delivery to door or to collect from the forwarder, depend on location)

DDP = Delivery Duty Paid (delivery to door or to collect from the forwarder, depend on location)

The above shipping information is general, and changing from time to time. Confirmation with us is necessary for each order.



Guangzhou tofee China one-stop hvac supplier





Payment

Payment Options

  • T/T (Telegraphic Transfer)
  • L/C (Letter of Credit)
  • Western Union
  • Alibaba Trade Assurance (AliPay)
