Wall Mounted AirTemperature & Humidity Sensor

  • PRODUCT DETAIL
  • DOWNLOAD
  • SHIPPING
  • PAYMENT
Description

RH1/TH1 series sensors are accurate, stable temperature and humidity transducer specifically designed for use in BAS and HVAC applications. These instruments are wall mounted and designed for measuring indoor environmental temperature and humidity. Features with delicate size and modern appearance. LCD display is optional as demand.

The product is widely used in commercial buildings, laboratories, pharmaceutical factories, clean factories, airports, subways, museums, stadiums and other places due to its excellent long-term stability and reliability.

Features

* Wide range of working temperature and multiple output signals are optional for different measurement environments.

* High reliability and excellent anti-interference performance.

* Easy installation and modern design.

* Superior protection for reverse voltage and overvoltage offers outstanding long-term stability.

* Configurable high-resolution LCD display.

* OEM (Original Equipment Manufacturer) at request.

Specification
Power Supply:24Vac/dc, 24Vdc (two rows), 12Vdc (two rows)
Power Frequency50/60Hz
Temperature Measuring Accuracy±0.3℃ (@ 25℃)
Temperature Measurement range0-50℃, -20-80℃, -40-60℃, or customizable.
RH Measuring Accuracy:±2%RH, ±3%RH, ±5%RH (@25℃, 20-80%RH)
RH Measurement range0-100%RH
Output Signal4-20mA, 0-10V, 0-5V, RS485/RS232
Display TypeLCD display
Response time< 10 s
Working Environment-25-70℃ & 0-95% RH, No Condensation (LCD: 0-50℃)
Storage Condition-40-70℃ & 0-95% RH, No Condensation
IP gradeIP30
Fire resistance gradeV-0 (UL94)
Casing MaterialABS
Ordering Information

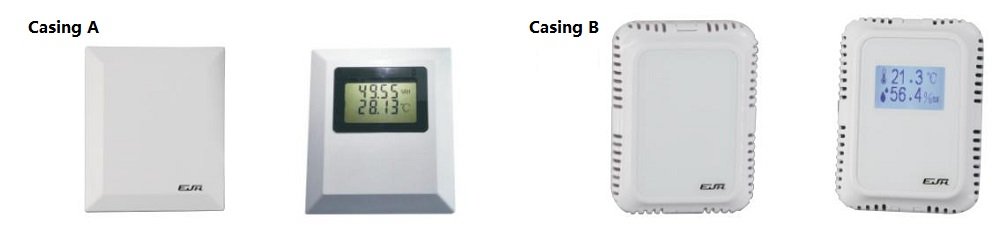

Casing

Dimension

Power

Supply

Output

Signal

Temperature Measurement rangeRH Measuring AccuracyDisplay
TH2D-A……

84*100*22

B……

85*115*29

1…… 24Vdc

2…… 24Vac

3…… 12Vdc

1……4-20mA

2…… 0-10V

3…… 0-5V

4…… RS485

1…… 0-50℃

2…… -20-80℃

3…… -40-60℃

D……customizable

2……±2%RH

3……±3%RH

5……±5%RH



0…… None

1…… LCD display
