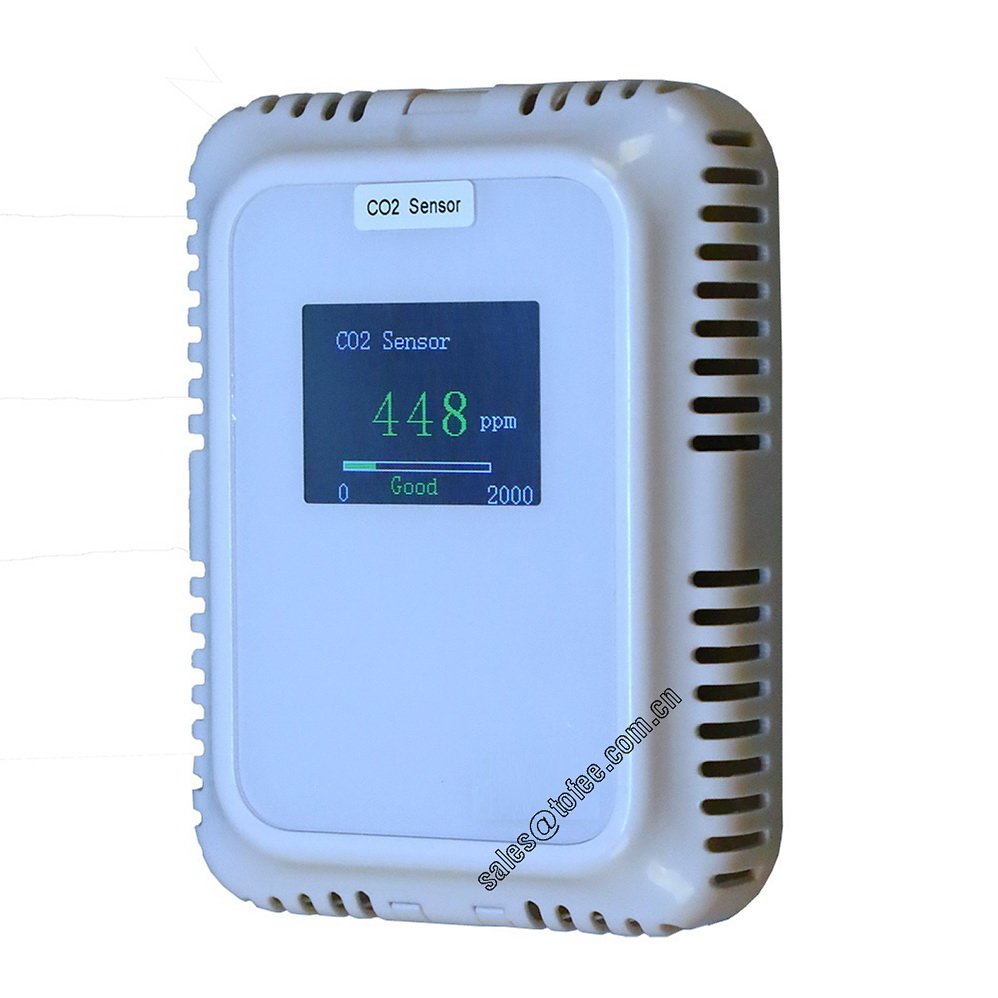

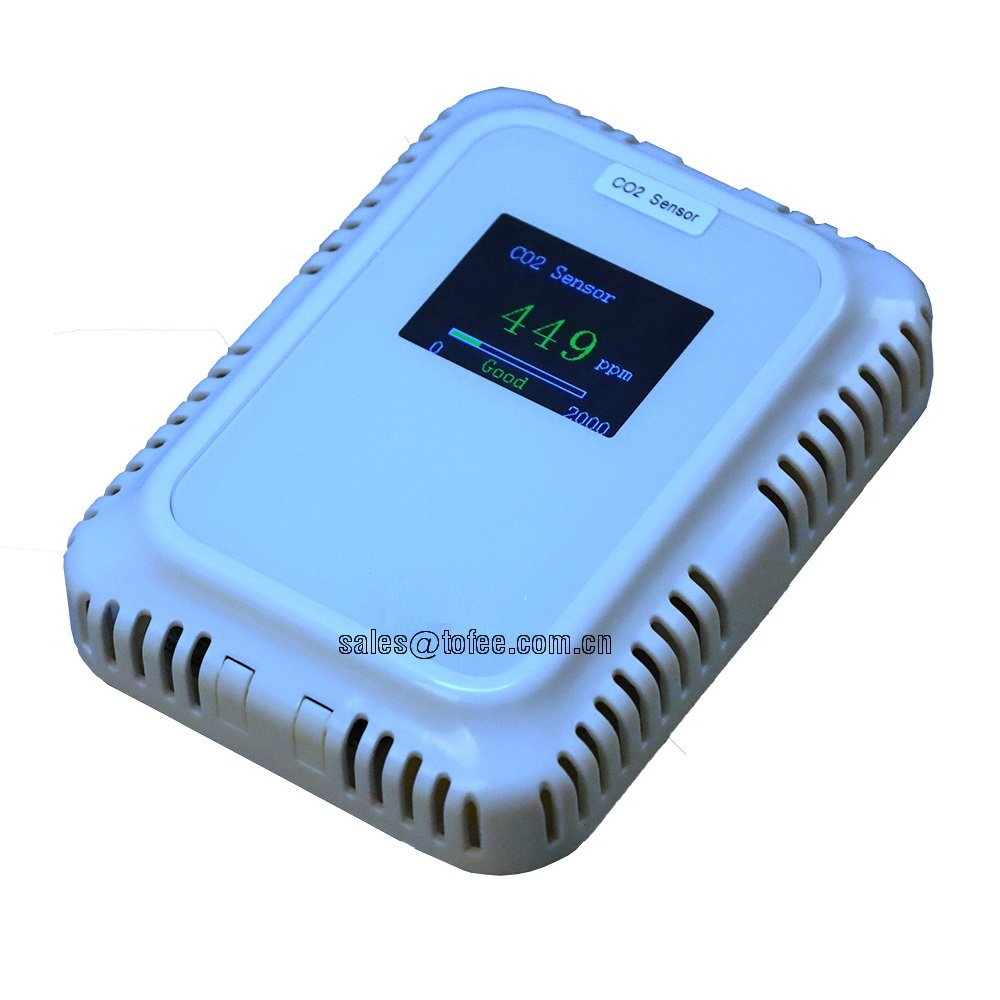

Wall Mounted CO2 Sensor

* Detecting range: 0-2000 PPM,

Other range customizable.

* Detecting accuracy: 3%, 5%.

* Output: 4-20mA, 0-10V,0 -5V, RS485/RS232.

Relay output customizable.

* Sensor element: Non-Dispersive Infrared (NDIR),

with ABC self-calibration function.

* LCD display: optional.

* Power supply: 24 Vac/dc

  • PRODUCT DETAIL
  • DOWNLOAD
  • SHIPPING
  • PAYMENT
Description

The CO2 sensor uses high-precision sensor elements and high-performance digital circuit technology to measure the concentration of CO2. Various power supply modes and output signals can be chosen. Featured with high-accuracy and outstanding long-term stability. LCD display is optional as required.

The sensing element uses the latest technology of Non-Dispersive Infrared (NDIR). The sensor is suitable for measuring indoor air quality for human occupied space, agricultural and industrial space where to maintain a desired range of CO2 concentration. The output signal can be used by building automation system.



Features

* High accuracy sensing element, fast responding and long term stability.

* Service life of CO2 sensing element exceeds 15 years.

* Easy installation and modern design.

* Options of shape and dimension to suit for various installation.

* High resolution LCD screen displayer optional.

* Multiple signals output for different system.

* Superior protection for reverse voltage and overvoltage.

* Excellent reliability and anti interference performance.

* Suitable for detecting CO2 concentration indoor room and duct in HVAC systems.

* OEM (Original Equipment Manufacturer) or ODM (Original design manufacturer) at request.



Specification
Sensor elementNon-Dispersive Infrared (NDIR), with ABC self-calibration function
Sensing principleDiffusion sampling
Detecting range0-2000PPM
Detecting accuracyshown in below table
Sensor coverage area20 m2  as recommended
Output signal4-20mA, 0-10V, 0-5V, RS485 / RS232 (MODBUS RTU)
Baud rateLocally set to 9600
Mounted height1.2~1.8m above ground for wall mounting
Response timeT90  ≤ 10s (30cc / min, low air velocity)
Warm-up time<180s
Drift<+/- 10 PPM per year
Calibration intervalself calibrate per 7 days
Power supply24V DC/AC
Working environment-10~50 deg C & 0~95%RH, non-condensing air
Storage environment-20~80 deg C & 0~95%RH, non-condensing air
Casing materialABS plastic for wall mounted type, ABS plastic + PC for duct mounted type
Protection classwall mounted type IP 30, duct mounted type IP 65
Fire-resistancetested as per UL94-V0
Displayback light LCD (optional)
CertificateCE



Ordering Information
 TypeSpanOutput SignalOptional
CES2000-B2…… Room

D2…… Duct

0…… 0-2000PPM, ±50PPM ±5%

1…… 0-2000PPM, ±50PPM ±5%

2…… 0-2000PPM, ±50PPM ±5%

D…… Customized

0…… 4-20mA / 0-10V

1…… RS485



0…… None

1…… LCD display

2…… Relay

3…… LCD display + Relay

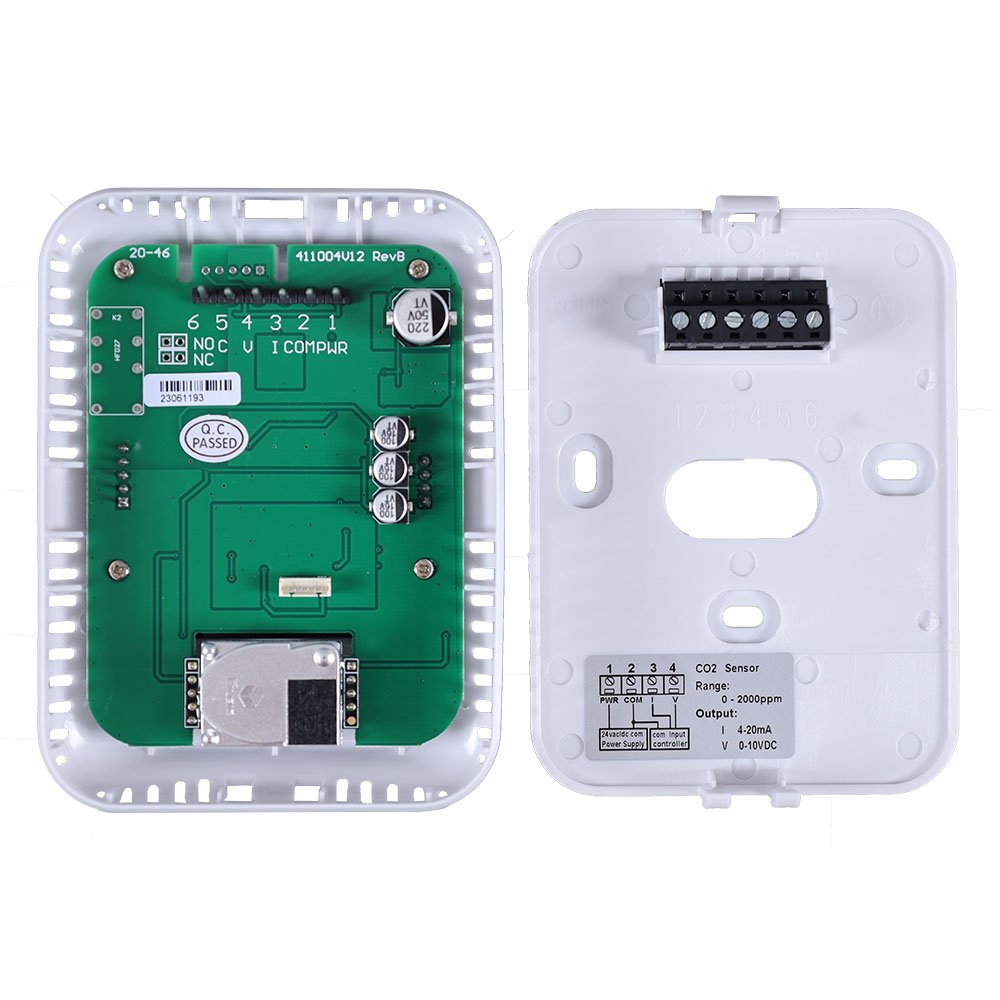

* Structure:
