Wall Mounted Exhaust Fan
- PRODUCT DETAIL
- Download
- Shipping
- Payment
| Description |
Auto-Louver Open/Close
- Designed for direct exhaust to outdoor for domestic and commercial place.
- Durable and reliable capacitor run induction motor with high performance.
- Tighten blade position, detachable for easy cleaning of fan blades.
- Maintain best Indoor ventilation and air circulation.

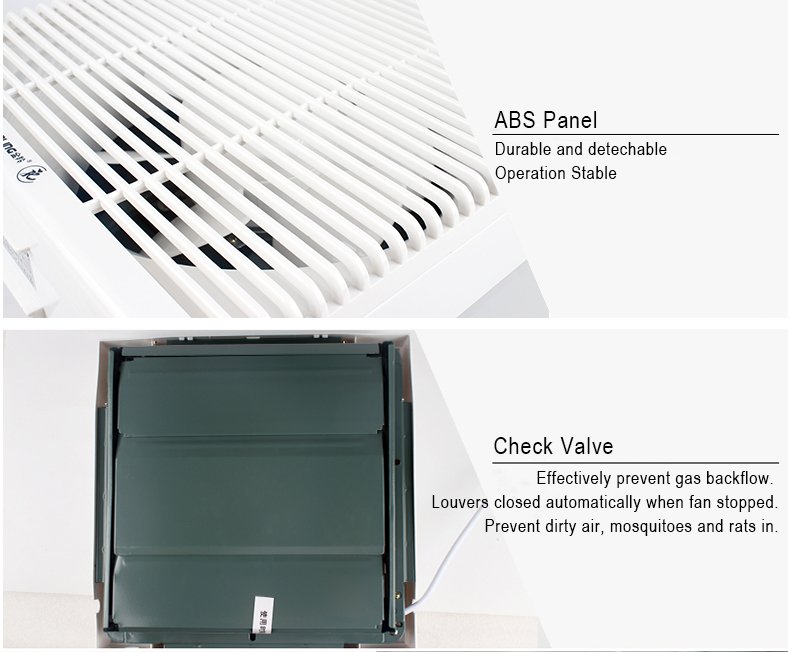

Detachable Front Louver
- Elegant and aesthetically pleasing design
- Made of ABS (Acrylonitrile Butadiene Styrene) in one-piece structure, easy installation and cleaning.
- Prevent accidental touching of fan blades by fingers and obstacles
| Specification (Power supply 220V~50Hz) |
| Model | Size | Power | Flow rate | Rotating speed | Noise | Application area | Quantity | Gross weight | |
| mm | in | W | m³/h | r/min | dB(A) | m² | c | kg/case | |
| APB15-3-1M | 150 | 6 | 24 | 258 | 1350 | 41 | 16~20 | 8 | 14.3 |
| APB20-4-1M | 200 | 8 | 28 | 486 | 1250 | 43 | 20~25 | 5 | 10.7 |
| APB25-5-1M | 250 | 10 | 38 | 750 | 1200 | 45 | 30~37 | 5 | 13.4 |
| APB30-6-1M | 300 | 12 | 46 | 1200 | 1050 | 48 | 45~55 | 4 | 13.4 |

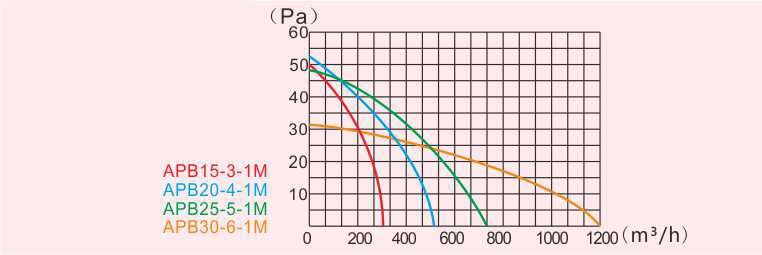

Performance curve

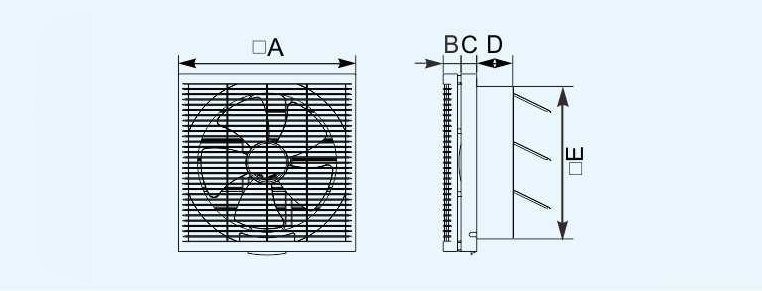

| Dimensions (mm) |
| Model | A | B | C | D | E | Hole Size | Package dimensions |
| mm | cm | ||||||
| APB15-3-1M | 237 | 29 | 37 | 82 | 192 | 200×200 | 70.1x25x51 |
| APB20-4-1M | 293 | 33 | 35 | 66 | 240 | 250×250 | 83.7×30.5×31.3 |
| APB25-5-1M | 338 | 36 | 35 | 77 | 290 | 300×300 | 86.8x35x35.9 |
| APB30-6-1M | 396 | 40 | 35 | 88 | 340 | 350×350 | 75.5×41.2×41.5 |
Download
Data Sheet: Wall Mounted Exhaust Fan
If password required, please send email to info@tofee.com.cn to request.
Shipping
Shipping terms
| Delivery Method | Incoterms Term | Applicable Countries |
| LCL, FCL by sea | EXW, FOB, CFR, CIF | General for all countries. |
| Air courier to door | DDU, DDP | General for all countries. |
| Air cargo to airport | CIF | General for all countries. |
| Door to door by road | DDP | Cambodia, Laos, Myanmar, Thailand, Vietnam. (keep expanding to more countries) |
| Door to door by sea | DDU, DDP | Cambodia, Indonesia, Malaysia, New Zealand, Philippines, Singapore, Thailand, United Arab Emirates, United Kingdom, United States. (keep expanding to more countries) |
LCL=Less than Container Load, FCL =Full Container Load.
DDU = Delivery Duty Unpaid (delivery to door or to collect from the forwarder, depend on location)
DDP = Delivery Duty Paid (delivery to door or to collect from the forwarder, depend on location)
The above shipping information is general, and changing from time to time. Confirmation with us is necessary for each order.
