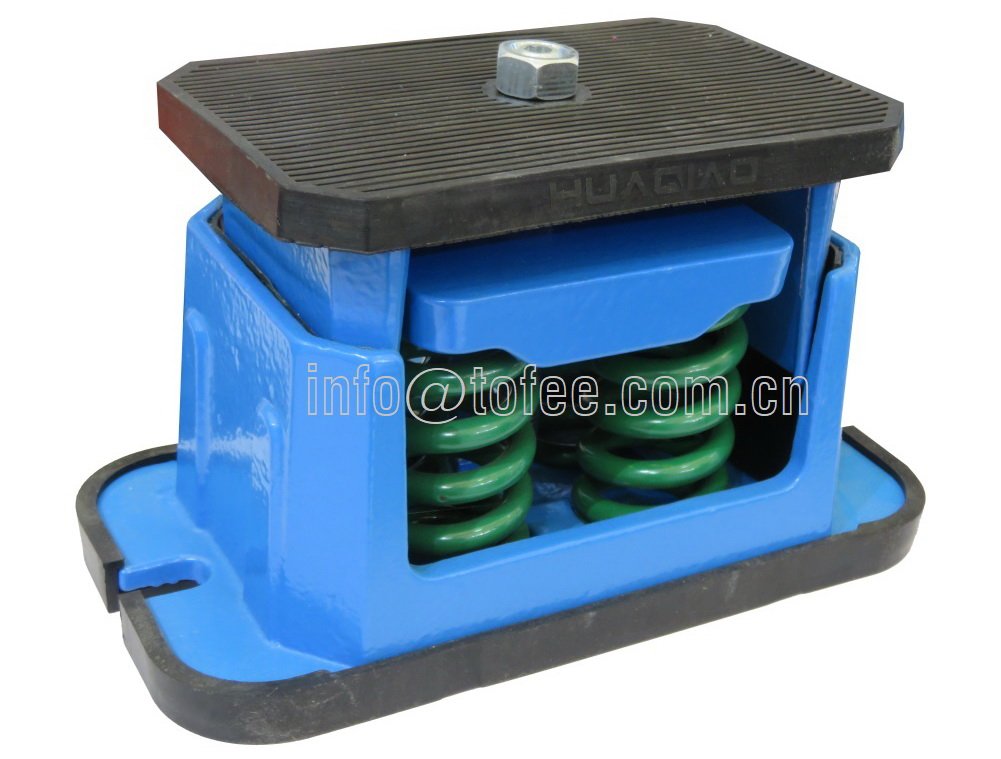

BZP Housed Spring Mount Vibration Isolator

Model: BZP

Capacity Range: 40Kg - 2500Kg

Deflection: 18mm

Application: Pumps / Chillers / Boilers / Compressors / Generators / Fans

PRODUCT DETAIL
Download
Shipping
Payment

Description

BZP series spring mounts are highly effective in isolating high and low frequency vibration generated by floor-mounted mechanical machinery where more damping is required and less motion can be tolerated than free-standing spring isolators, typically lightweight mechanical equipment, having lowest operating speeds of 1200 RPM, located in non-critical areas such as grade supported slabs or short structural floor spans, when the isolator-to-equipment connection is such that a leveling bolt can extend above the mount and act as a leveling and attachment bolt for supported equipment.

BZP Mounts are economical choice for outdoor applications. With the lateral stability, they are recommended for moderate horizontal wind loads without seismic restraint requirements.

Features

◆ Springs are designed with 50% overload capacity to compensate for unexpected load variations and to reduce operating stress.

◆ In compliance with ASHRAE guidelines, springs are designed with a horizontal stiffness of at least 100% of the vertical stiffness, to ensure stability.

◆ High deflection, laterally stable spring elements assembled into telescoping cast iron housing.

◆ Ribbed, noise absorbing pads are bonded to the bottom and top surfaces.

◆ Internal or external adjusting/leveling bolt as a part of the top loading plate.

◆ Holes or slots are provided for bolting the isolator to the structure.

◆ Epoxy powder coated springs and housings with a 1000 hour salt spray rating.

◆ Semi-circular neoprene sponge inserts between the upper and lower housings that limit movement due to start and stop and horizontal wind load.

Application

BZP series mounts are suitable for installation under all types of equipment and particularly recommended for outdoor installations.

Application examples include: Chillers, AHU’s Pumps, Centrifugal / Axial Fans, Condensing Units, Rooftop Packaged Units, Reciprocating Compressors, DG Sets, Punch Presses, Drop Hammers, Pipe support points located within mechanical equipment rooms, on rooftops and in other noise-critical areas of the building.

Detailed Images and Video

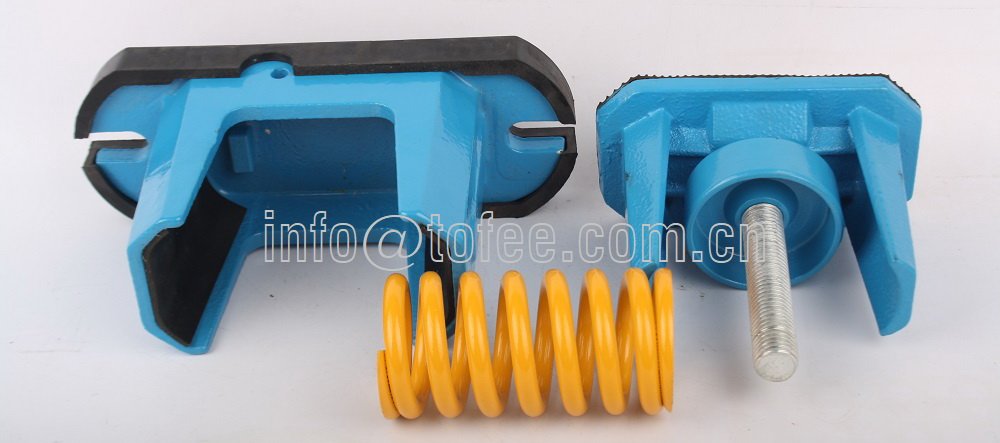

Components of BZP1 (1 spring) housed spring mount:
