Eggcrate Air Grille

◇ 0° / 45° deflection.

◇ Cross notched constructed for maximum durability.

◇ Standard material thickness is 0.35 / 0.47 mm.

◇ Grid core sizes and heights customizable.

◇ Eggcrate grid core can be loose or welded to frame.

◇ Can be used as access door.

◇ Beveled Edges available.

  • PRODUCT DETAIL
  • DOWNLOAD
  • SHIPPING
  • PAYMENT
Description

The eggcrate air grille is used for supplying or returning air, has the lowest pressure drop and sound level by the largest free area available. Consisting of aluminum strips that are machine cut and notched, then bonded together to form a horizontal and vertical grid structure, the eggcrate air grille has uniform square openings with 0/45 degree deflection air flow. Ideal for ceiling and wall installation in commercial and residential HVAC projects. Eggcrate plates fixed to frame or removable core is optional.

Construction

Frame: High quality extruded aluminum profile with 30 mm flange width as standard. Other width is optional.

Blade: Aero foil blades from aluminum profiles. High quality extruded aluminum profile with 0.35 / 0.47 mm thickness.

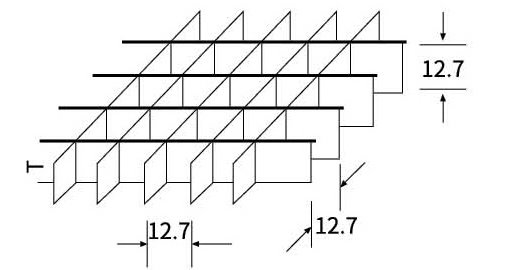

Grid spacing: 12.7 x 12.7 mm as standard.

Finishing

Natural anodized aluminum finish.

High Quality Epoxy Powder coated color finish as per RAL color codes.

Flexibility of finishing is available as option.

Optional Accessories

OBD (Opposed blades damper).

Black nylon mesh filter.

Features

◇ 0° / 45° deflection.

◇ Cross notched constructed for maximum durability.

◇ Standard material thickness is 0.35 / 0.47 mm.

◇ Grid core sizes and heights customizable.

◇ Eggcrate grid core can be loose or welded to frame.

◇ Can be used as access door.

◇ Beveled Edges available.

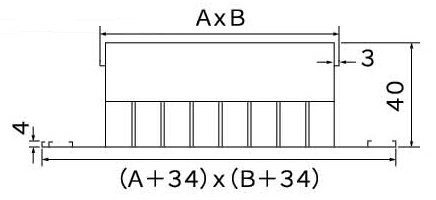

Dimension

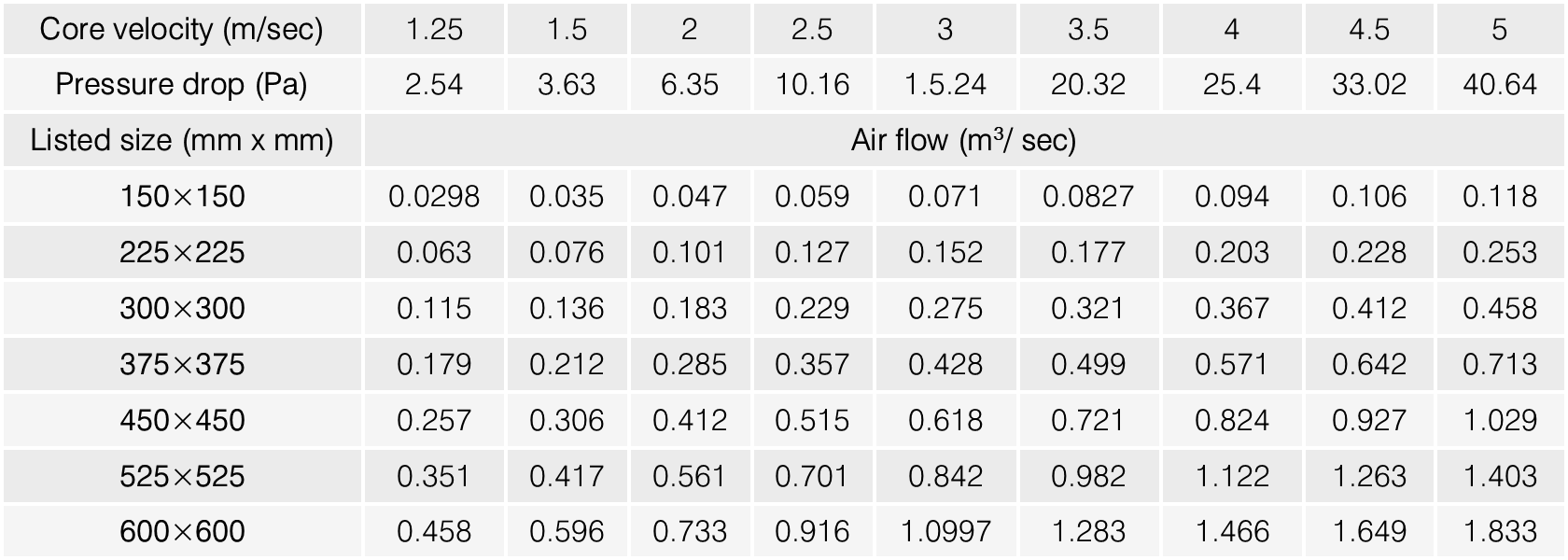

Air Flow Data

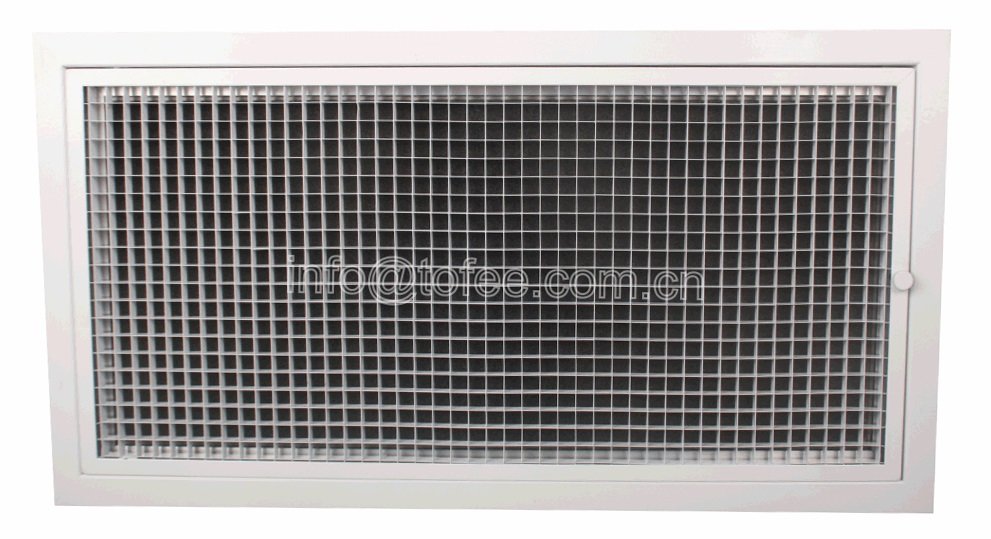

Details Images



DOWNLOAD

SHIPPING

Delivery Options:

Delivery Method
Incoterms Term
Applicable Countries
LCL, FCL by sea
EXW, FOB, CFR, CIF
General for all countries.
Air courier to door
DDU, DDP
General for all countries.
Air cargo to airport
CIF
General for all countries.
Door to door by road
DDP
Cambodia, Laos, Myanmar, Thailand, Vietnam. (keep expanding to more countries)
Door to door by seaDDU, DDPCambodia, Indonesia, Malaysia, New Zealand, Philippines, Singapore, Thailand, United Arab Emirates, United Kingdom, United States.   (keep expanding to more countries)
LCL=Less than Container Load.     FCL =Full Container Load
DDU = Delivery Duty Unpaid        DDP = Delivery Duty Paid
The above shipping information is general, and changing from time to time. Confirmation with us is necessary for each order.
