Cleanroom HEPA Fan Filter Unit

  • Body Size(W×L×H mm) : Varieties of sizes are available
  • Filter Size(W1×L1×D1 mm) : Varieties of sizes are available
  • Noise: 48~54 db(A)/50~56 db(A)/52~58 db(A)
  • Fan Filter Pressure: 210 pa/220 pa/230 pa
  • Power: 170 W/210 W/275 W
  • Weight : 28 kg/35 kg/47 kg/50 kg/55 kg
  • Material : Power coat steel/Galvanized Aluminum Plate/Stainless Steel 304
  • Power Supper :AC110V/220V 50Hz/60Hz or AC220V/380V 50Hz/60Hz
  • High Efficient Power :Three Section Adjustable / Five Section Adjustable
  • Filter Efficient : HEPA 99.99% @ 0.3 micron / ULPA 99.999% @ 0.12 micron
  • Connection Type :Terminal block / male and female connector / power cord
  • PRODUCT DETAIL
  • DOWNLOAD
  • SHIPPING
  • PAYMENT
Description

A fan filter unit (FFU) is a type of air filtration equipment comprises of fan, filter fixed in an air tight metal enclosure. It is used to supply purified clean air to critical spaces such as cleanrooms, pharmacies, pharmaceutical manufacturing facilities, laboratories, etc.

The FFU has a built-in aluminum centrifugal fan to provide sufficient static air pressure and efficient operation. It delivers high volumes of HEPA (or ULPA) filtered air at low sound levels.



Features

∎ High energy efficiency

· Aluminum centrifugal fan controlled by 3-speed switch brings high operation efficiency.

· High efficient motor reduces energy consumption.

∎ High filter efficiency

· HEPA (High-Efficiency Particulate Air) filters are rated 99.99% efficient at removing particles ≥ 0.3 microns.

· ULPA (Ultra-Low Penetration Air) filters are rated 99.999% efficient at removing particles ≥ 0.12 microns.

∎ High airflow capacity

· Internal baffling plate and diffuser panel provide quiet uniform air flow across the filter face.

· Fewer units required to meet airflow demand means lower cost.

∎ Simple installation and maintenance.

∎ Flexible options of material for casing.

∎ Optimized equipment layout.

∎ Reduced ceiling congestion.

∎ Allow remote monitoring and control.



 Parameter

Model

FFU-575FFU-1175FFU-875FFU-1175×2FFU-1475
Casing size(mm)

W×L×H

575×575×230575×1175×230875×1175×2301175×1175×230725×1475×230
Filter size(mm)

W1×L1×D1

570×570×69570×570×69870×1170×691170×1170×69720×1470×69
Air flow rate (m3/h)5001000150020001500
Noise db(A)48~5448~5450~56 52~5850~56
Fan total pressure (Pa)210210220230220
Power input (W)170170210275210
Weight (kg)28354755

50

Casing material options

◦ Powered coated steel sheet

◦ Galvanized steel sheet

◦ Stainless steel 304 sheet

Filter options

◦ HEPA 0.3μm above 99.99%

◦ ULPA 0.12μm above 99.999%

Power Supper

◦ 110V/50Hz/1P

◦ 220V/50Hz/1P

◦ 110V/60Hz/1P

◦ 220V/60Hz/1P

Fan speed switch

◦ 3-speed

◦ 5-speed

♦ Wire connection options

◦ Terminal block

◦ Male and female connector

◦ Power cord

♦ Working status light: running, fault

♦ Protection: dual overload protection switches for motor and controller

♦ Control Interface: dry contacts of running and fault

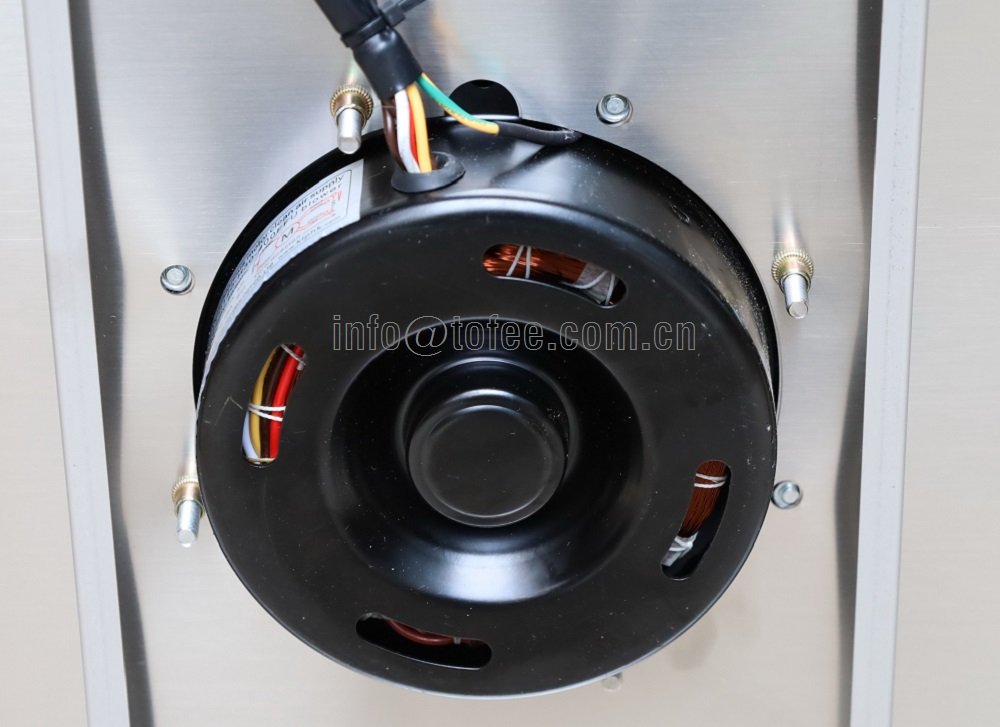

Detailed Images







DOWNLOAD

Coming...
