HEPA Filter

  • PRODUCT DETAIL
  • DOWNLOAD
  • SHIPPING
  • PAYMENT



Material of Construction

◊ Frame: Aluminum

◊ Sealant: Polyurethane adhesive, Hot melt adhesive

◊ Filter media: Glass filter paper

◊ Sealing gasket strip: Injection molded seamless polyurethane



Working Environment

◊ Maximum temperature: 80℃

◊ Maximum humidity: 80%



 Specification
Out dimension

(W×H×D mm)

Air volume

(m³/h)

Dust capacity

(g)

Surface air velocity

(m/s)

Initial pressure

(Pa)

Final pressure

(pa)

Efficiency

0.1-0.2μm

320×320×96500about 4500.35≤170400Over 99.9995%
610×610×69700about 7000.35
484×484×961000about 6500.45
610×610×901200about 9500.45
630×630×961500about 8000.6
915×610×962000about 12000.6
1220×610×963000about 16000.6

Note: Dimension is customizable.

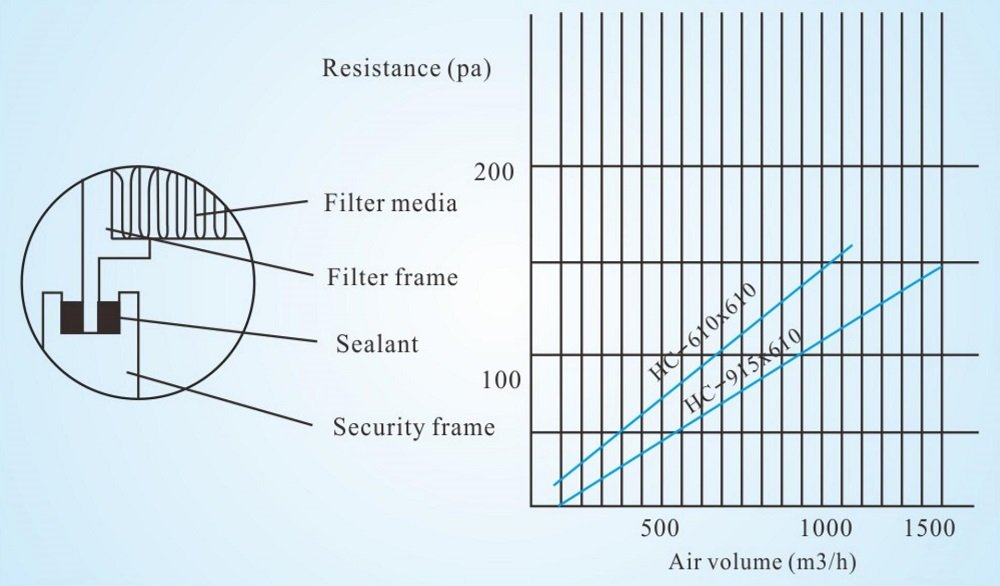

Performance Chart

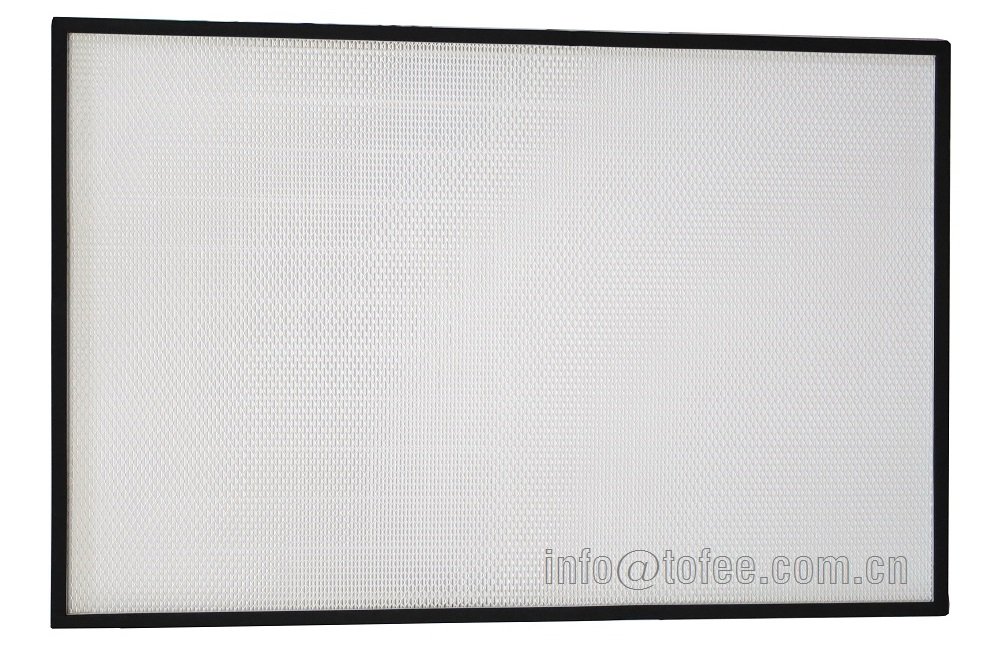

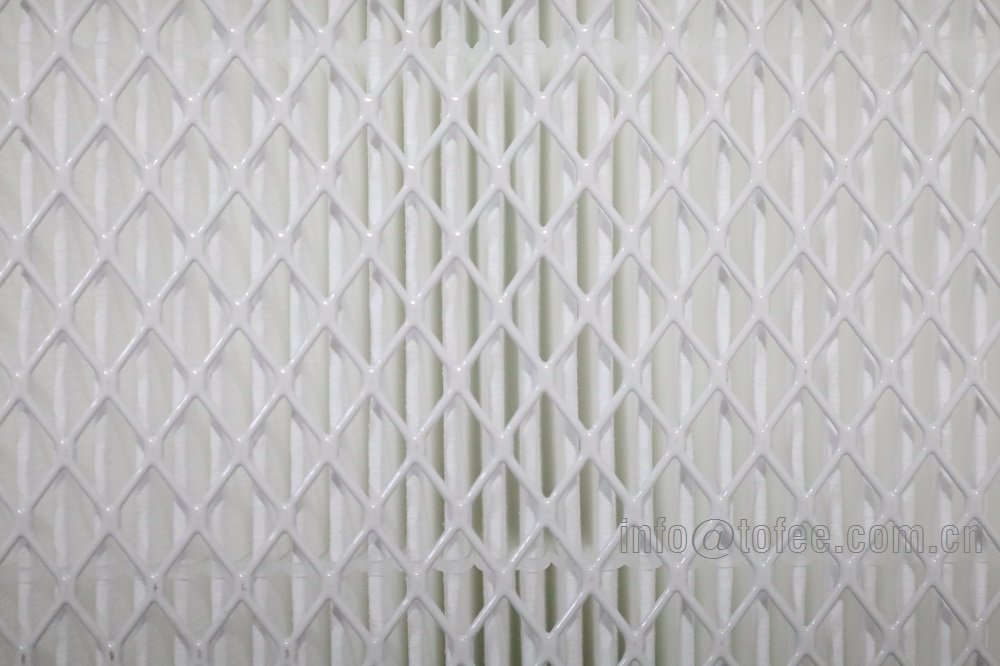

Detailed Images
