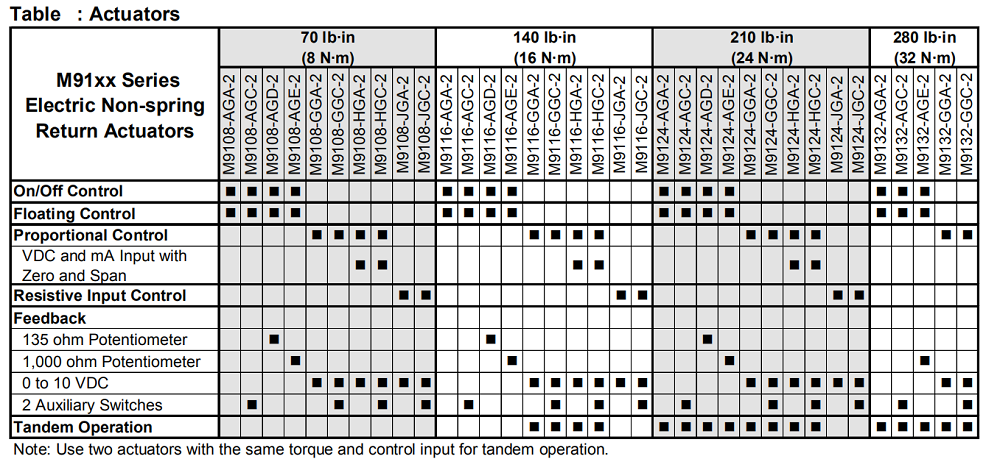

Johnson Controls M91xx Series Electric Non-spring Return Actuators

The M91xx Series includes M9116, M9124, and M9132 models. All of these direct-mount electric actuators operate on AC/DC 24 V power. The M91xx actuators are available for use with on/off, floating, proportional, or resistive controllers. These bidirectional actuators do not require a damper linkage, and are easily installed on a damper with a round shaft up to a 3/4 in. (20 mm) in diameter or a square shaft up to 5/8 in. (16 mm). They may be direct or remote mounted to a damper, or mounted to a valve using one of the M9000-5xx Valve Linkage Kits.

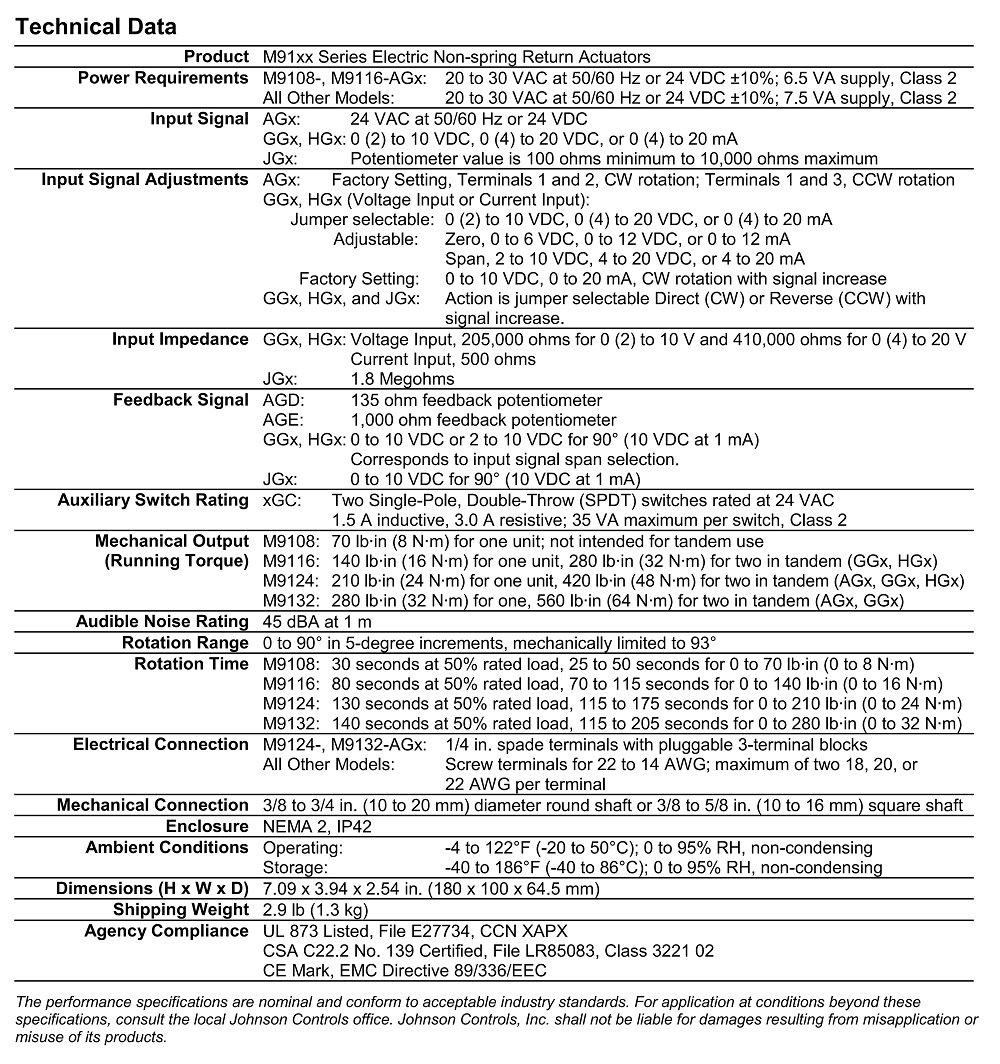

A single M91xx model delivers up to 280 lb·in (32 N ·m) of torque. Two -AGx, -GGx, or -HGx models in tandem deliver twice the torque or 560 lb·in (64 N· m). The angle of rotation is mechanically adjustable from 0 to 90° in. 5-degree increments. Integral auxiliary switches are available to indicate end-stop position or to perform switching functions at any angle within the selected rotation range. Position feedback is available through switches, a potentiometer, or a DC 0(2) to 10 V signal.

♦ Six Torques: 70 to 560 lb·in (8 to 64 N·m)

⋅ Offer the most suitable choice for the application

♦ Four Control Inputs

⋅ Meet the needs of most applications

♦ Output Position Feedback

⋅ Provides simple, closed-loop control with accurate position sensing

♦ Electronic Stall Detection

⋅ Ensures higher reliability by deactivating the actuator motor when a stall condition is detected

♦ Master/Slave Operation

⋅ Allows synchronized control for two actuators stacked for tandem applications

♦ Zero and Span Adjustment (HGx Models)

⋅ Allows sequential operation of dampers from a single input signal of 0 (2) to 10 VDC, 0 (4) to 20 VDC, or 0 (4) to 20 mA

♦ Jumper-selectable Rotation Direction and Manual Gear Release

⋅ Simplify installation, setup, and field adjustments

♦ NPT Threaded Housing

⋅ Provides easy connection for electrical fittings
