Flanged Modulating Pressure Independent Control Valve (PICV)

Description PHF-DD-HF series modulating pressure independent control valve (PICV) used for balacing the piping network which pipe size range from 32 to 200 mm in HVAC system. The PICV combines the functions of hydraulic balancing and modulating control in one unit. It controls the water flow and temperature automatically to save energy rationally and realize intelligent management by its int ...
  • PRODUCT DETAIL
  • Download
  • Shipping
  • Payment
Description

PHF-DD-HF series modulating pressure independent control valve (PICV) used for balacing the piping network which pipe size range from 32 to 200 mm in HVAC system. The PICV combines the functions of hydraulic balancing and modulating control in one unit. It controls the water flow and temperature automatically to save energy rationally and realize intelligent management by its intelligent module device. The PICV features with high control accuracy and strong antielectromagnetic interference capability, is especially suitable for the variable flow piping system with large load fluctuation.

Features

Good stability: Flow value is not influenced by pressure undulation and is not influenced by each other.
Energy-saving: It saves more 6-20% energy than traditional system.
High efficiency: Greatly shorten the debugging time and high efficiency running.
Higher temperature control precision, more comfortable than the traditional type.

Specification

The stem seal: four layer V type 0 type nitrile rubber seals, PTFE envelope

Stem material: stainless steel 06Cr19Ni10

Valve core: brass

Differential pressure range: 0.03-0.3Mpa

Nominal pressure (PN): 1 .6MPa

Working medium: water, fluid temperature -10~95 deg C

Valve leakage: less than 0.05% of KVs

Rated travel20mm40mm
Rated thrust1200N1800N
Model No.DFQ-HCDFQ-HD
Order No.Model No.Valve typeSize (DN)Connection typeBolt sizeKvs (%)Dimensions (mm)Max. diff. pressure (kPa)Max. diff. pressure (kPa)
LH
14078PHF-DD-H32F2-way32 Flange4xM164.7180162300/
14079PHF-DD-H40F2-way40Flange4xM165.5200162300/
14080PHF-DD-H50F2-way50Flange4xM168230164250/
14081PHF-DD-H65F2-way65Flange4xM1612.5290178200/
14082PHF-DD-H80F2-way80Flange8xM1633310182150/
14083PHF-DD-H100F2-way100Flange8xM1654350264/150
14084PHF-DD-H125F2-way125Flange8xM1672400275/100
14133PHF-DD-H150F2-way150Flange8xM2086480291/100
14085PHF-DD-H200F2-way200Flange12xM20100600312/80
Instruction
This series valve can be matched with Siemens actuator.
That valve stem downward running is the closing direction of the valve.
Make sure the pipe is clean and without oxide and metal after welding before installation.
It must be at the same point and free from shocks when connect the pipe and valve body. The flow direction should be same as the direction of the label.
When the actuator is vertically installed on the valve, please avoid installing it under the valve to leave enough space for daily maintenance(like remove the actuator).
Cut off the electricity to make sure there is no pressure in the water system when maintenance.
DFQ-HD Series Motorized Valve Actuator

DQF-H series motorized valve actuator is matched with 2/3-way motorized valve to adjust the medium flow.It’s widely used in central air conditioning system, heating system and other occasions to meet the user from simple single-room temperature control to complex building automatic control requirements. It can achieve the required ambient temperature,obtain a comfortable environment and save energy through flow control.

Feature
Easily installed
Connecting rod is unnecessary
Accurate valve positioning
With manual operator
Terminal limit switch
Forward and reverse action
Synchronous motor
Corrosion protection design
Maintenance free
Specification
Model No.DFQ-HDMDFQ-HDM-220DFQ-HDKDFQ-HDK-200
TypeModulationON/OFF
Power24VAC+/-10%,

50/60 Hz

220VAC+/-10%,

50/60 Hz

24VAC+/-10%,

50/60 Hz

220VAC+/-10%,

50/60 Hz

Power consumpion12W, 50Hz;

14W, 60Hz

15W, 50Hz;

19W, 60Hz

11W, 50Hz;

11W, 60Hz

14.3W, 50Hz;

19W, 60Hz

Input signal0(2)~10V;

0(4)~20mA optional

24VAC220VAC
Signal feedback0(2)~10V24VAC220VAC
Thrust1800N
Stroke40mm
Travel time240s, 50Hz;

220s, 60Hz

250s, 50Hz;

206s, 60Hz

260s, 50Hz;

200s, 60Hz

260s, 50Hz;

214s, 60Hz

MaterialGear: formaldehyde, nylon
Lower plate ofreducer: galvanized steel
Bracket: die-cast aluminum alloy
Housing: flame retardant ABS engineering plastics
Temperature litationnAmbienttemperature: -10~ + 50 deg C
storage temperature: -40~+ 50 deg C
Humidity1%~95% RH with no dewFluid Temperaturenot more than 150 deg C
Protection gradeIP54Weight0.514kg

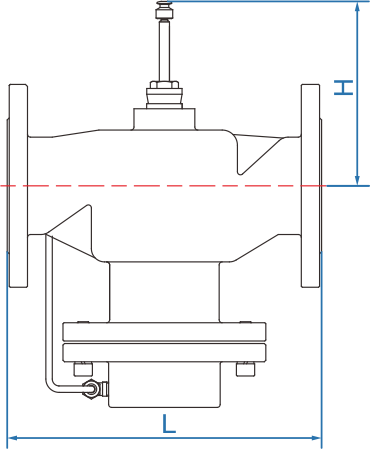

Dimensions
