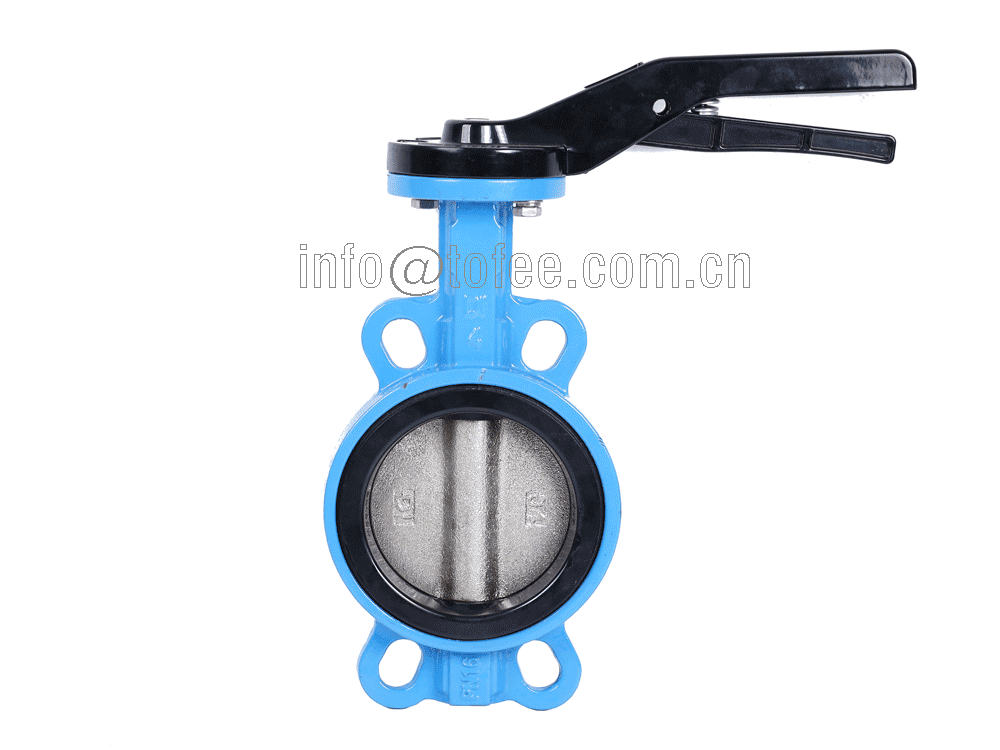

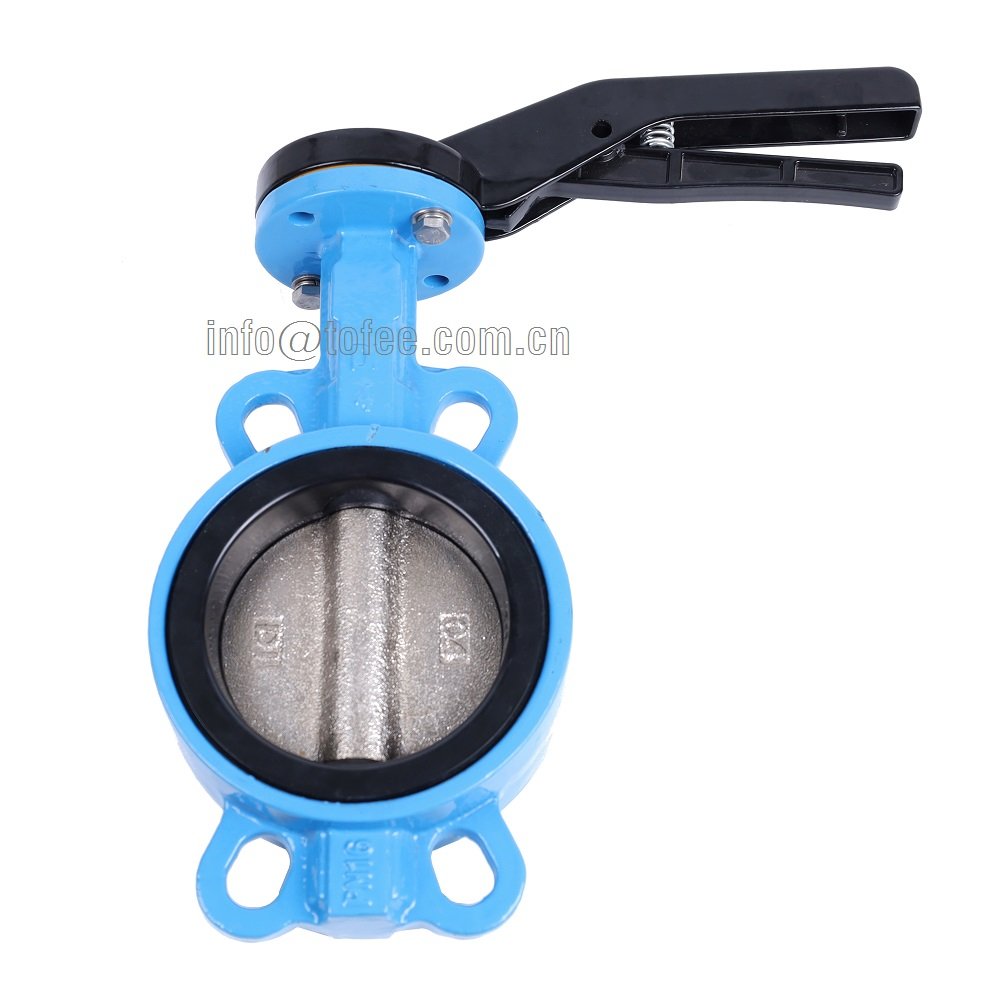

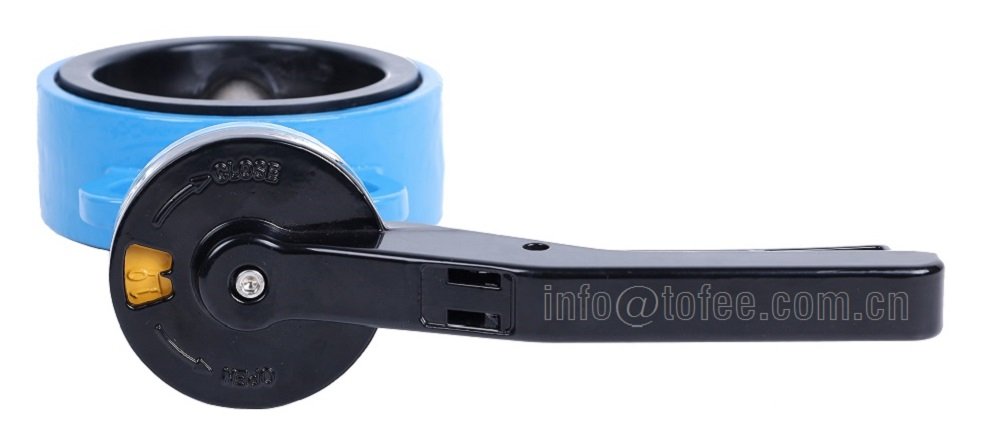

Lever Wafer Butterfly Valve

  • PRODUCT DETAIL
  • DOWNLOAD
  • SHIPPING
  • PAYMENT



Description

For application in HVAC systems, butterfly valves are recommended as shut off valve in closed water circulating piping system,  e.g chillers, pumps, AHUs, cooling towers, etc. Lever type is recommended for below DN200 (8″).



Features

♦ Easy installation and operation

♦ High strength, low pressure drop

♦ Tight shut-off design

♦ Excellent corrosion resistance

♦ Wafer connection for wide adaptability with various flange standards



Specification

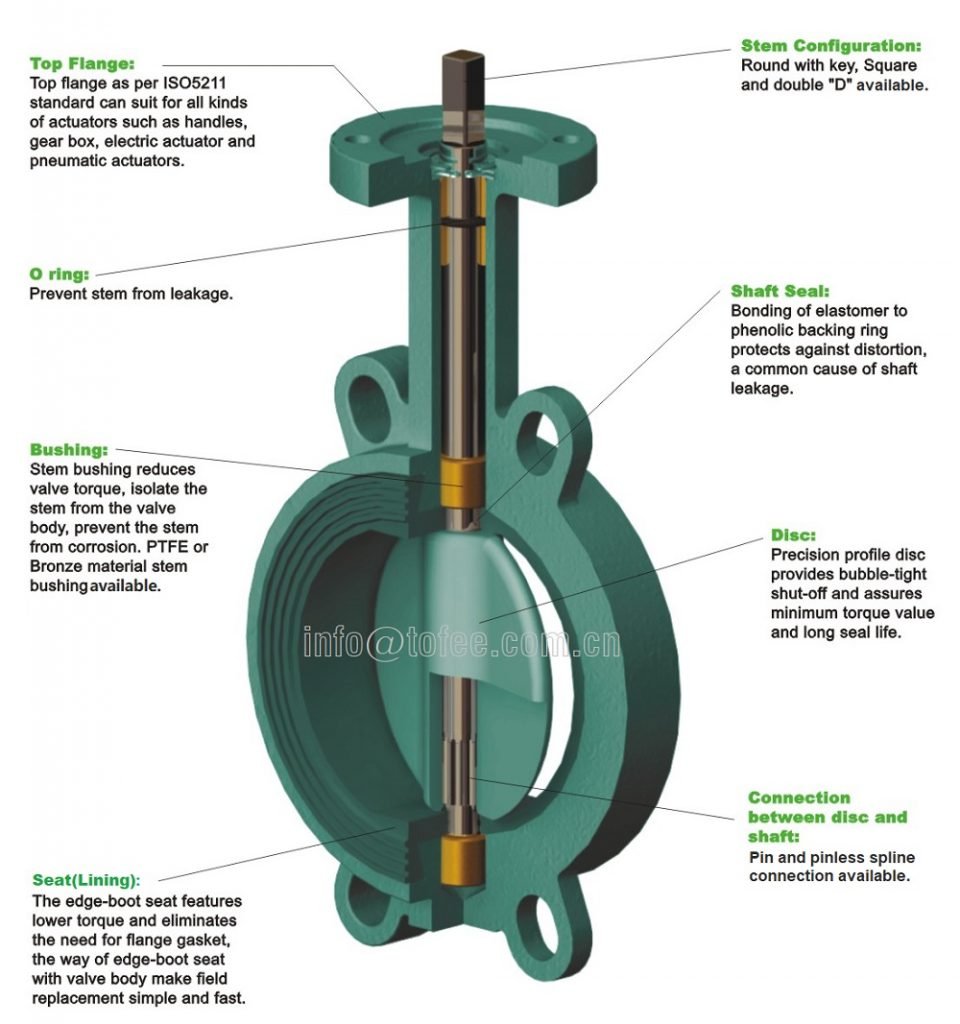

♦ Structure:



Pressure rating: 10, 16, 25 bar

Testing pressure: 130% of pressure rating

Working temperature: -20℃ to 110℃

Suitable fluid: water, oil and gas



Detailed Images
